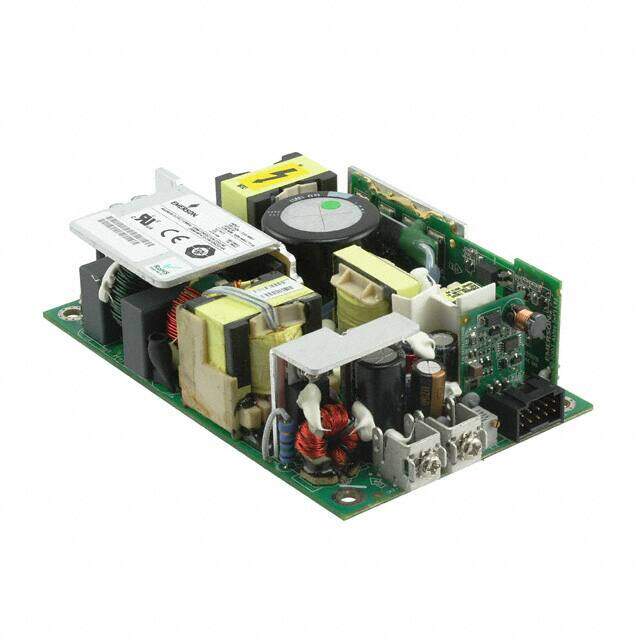

LPS208-M
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 48V 125W
PDF
/
Buying Options
Total Price: USD $104.47
Unit Price: USD $104.4736
≥1 USD $104.4736
≥10 USD $101.25632
≥100 USD $98.04168
≥500 USD $91.6124
≥1000 USD $88.397874
Inventory: 356
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature 0°C~70°C With Derating
Published 2009
Series LPS200-M (250W)
Size / Dimension 5.00Lx3.00W x 1.50 H 127.0mmx76.2mmx38.1mm
Feature Adjustable Output, DC Input Capable, PFC, Remote Sense, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 14
ECCN Code EAR99
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 125W 250W Forced Air
Power Rating 250W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Number of Outputs 1
Approval Agency CB, CE
Efficiency 86%
Output Voltage 48V
Trim/Adjustable Output YES
Voltage - Input 90V~264VAC
Output Current 5.2A
Output Power 250W
Minimum Load Required No
Compliance
RoHS Status RoHS Compliant
