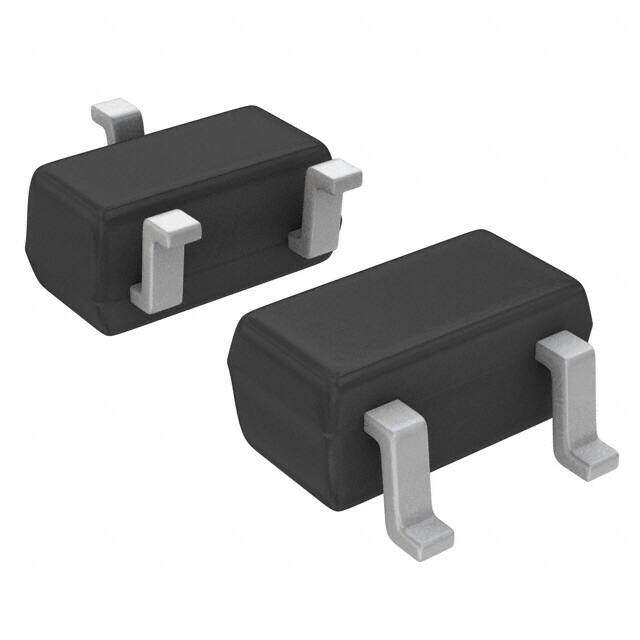

RCLAMP0502BATCT image
Favorite
RCLAMP0502BATCT image
Favorite

RCLAMP0502BATCT

Semtech Corporation
RoHS
RoHS RoHS compliant
Package SC-75, SOT-416
Category Circuit Protection / TVS - Diodes
Description TVS DIODE 5V 25V SC75
PDF
/
Buying Options
Total Price: USD $0.04
Unit Price: USD $0.03719
≥1 USD $0.03719
≥10 USD $0.029864
≥100 USD $0.026201
≥500 USD $0.02271
≥1000 USD $0.020511
≥9000 USD $0.019413
Inventory: 1395
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant

Technical

Capacitance @ Frequency 1.2pF @ 1MHz
Rep Pk Reverse Voltage-Max 5V
Breakdown Voltage 6V
Unidirectional Channels 2
Voltage - Reverse Standoff (Typ) 5V Max
Voltage - Clamping (Max) @ Ipp 25V
Current - Peak Pulse (10/1000μs) 5A 8/20μs
Power - Peak Pulse 125W
Power Line Protection No
Polarity UNIDIRECTIONAL
Number of Elements 2
Pin Count 3
Base Part Number RCLAMP050
Terminal Form GULL WING
Terminal Position DUAL
Technology AVALANCHE
Subcategory Transient Suppressors
HTS Code 8541.10.00.50
Applications General Purpose
Terminal Finish Matte Tin (Sn)
Type Zener
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Series RailClamp?
Published 2010
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C TJ

Physical

Diode Element Material SILICON
Number of Pins 3
Surface Mount YES
Package / Case SC-75, SOT-416
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 6 Weeks
