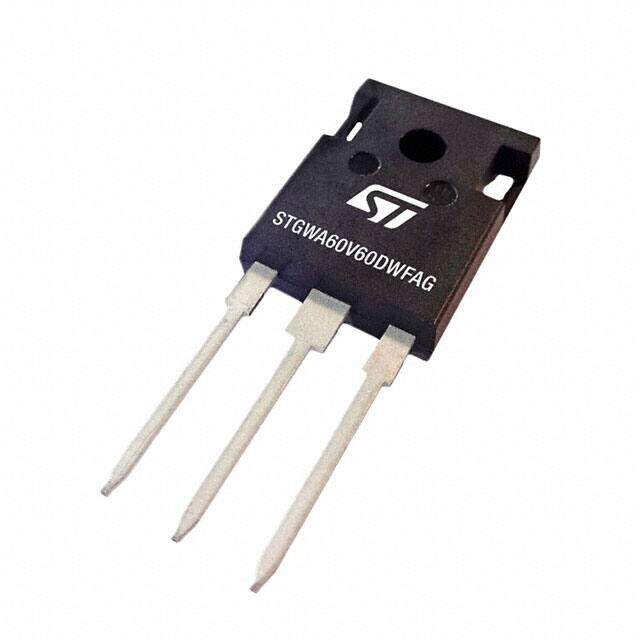

STGWA60V60DWFAG
RoHS
RoHS compliant
RoHS compliantPackage TO-247-3
Category Discrete Semiconductor Products / Transistors - IGBTs - Single
Description
AUTOMOTIVE-GRADE TRENCH FIELD-ST
PDF
/
Inventory: 5302
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 26 Weeks
Physical
Mounting Type Through Hole
Package / Case TO-247-3
Technical
Operating Temperature -55°C~175°C TJ
Series Automotive, AEC-Q101
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Input Type Standard
Power - Max 375W
Reverse Recovery Time 200ns
Voltage - Collector Emitter Breakdown (Max) 600V
Current - Collector (Ic) (Max) 80A
Test Condition 400V, 60A, 4.7 Ω, 15V
Vce(on) (Max) @ Vge, Ic 2.3V @ 15V, 60A
IGBT Type Trench Field Stop
Gate Charge 314nC
Current - Collector Pulsed (Icm) 240A
Td (on/off) @ 25°C 35ns/190ns
Switching Energy 1.02mJ (on), 370μJ (off)
Compliance
RoHS Status ROHS3 Compliant
