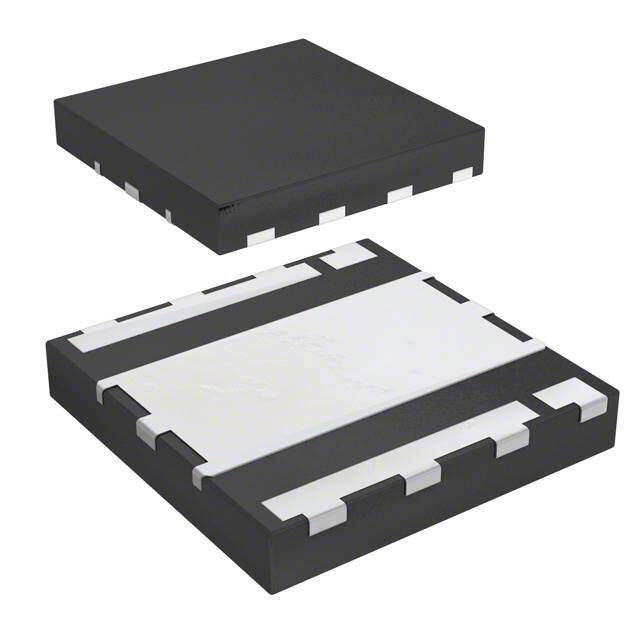

STL7NM60N
RoHS
RoHS compliant
RoHS compliantPackage 14-PowerVQFN
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-Ch 600V 5.8A 0.805 Second Gen MDmesh
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.36005
≥1 USD $0.36005
≥10 USD $0.29545
≥100 USD $0.28595
≥500 USD $0.27645
≥1000 USD $0.2679
Inventory: 67964
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
Pulsed Drain Current-Max (IDM) 5.6A
Drain to Source Breakdown Voltage 600V
Gate to Source Voltage (Vgs) 25V
Continuous Drain Current (ID) 5.8A
Turn-Off Delay Time 26 ns
Fall Time (Typ) 12 ns
Vgs (Max) ±25V
Drive Voltage (Max Rds On,Min Rds On) 10V
Rise Time 10ns
Gate Charge (Qg) (Max) @ Vgs 14nC @ 10V
Current - Continuous Drain (Id) @ 25°C 5.8A Tc
Input Capacitance (Ciss) (Max) @ Vds 363pF @ 50V
Vgs(th) (Max) @ Id 4V @ 250μA
Rds On (Max) @ Id, Vgs 900m Ω @ 2.5A, 10V
Transistor Application SWITCHING
FET Type N-Channel
Turn On Delay Time 7 ns
Case Connection DRAIN
Power Dissipation 4W
Operating Mode ENHANCEMENT MODE
Power Dissipation-Max 68W Tc
Configuration SINGLE WITH BUILT-IN DIODE
Number of Elements 1
JESD-30 Code S-PQCC-N5
Pin Count 14
Base Part Number STL7
Terminal Position QUAD
Technology MOSFET (Metal Oxide)
Terminal Finish Matte Tin (Sn)
Resistance 900mOhm
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series MDmesh? II
Packaging Tape & Reel (TR)
Operating Temperature -55°C~150°C TJ
Physical
Transistor Element Material SILICON
Number of Pins 14
Package / Case 14-PowerVQFN
Mounting Type Surface Mount
Mount Surface Mount
Alternative Model
