RFP40N10
RoHS
/

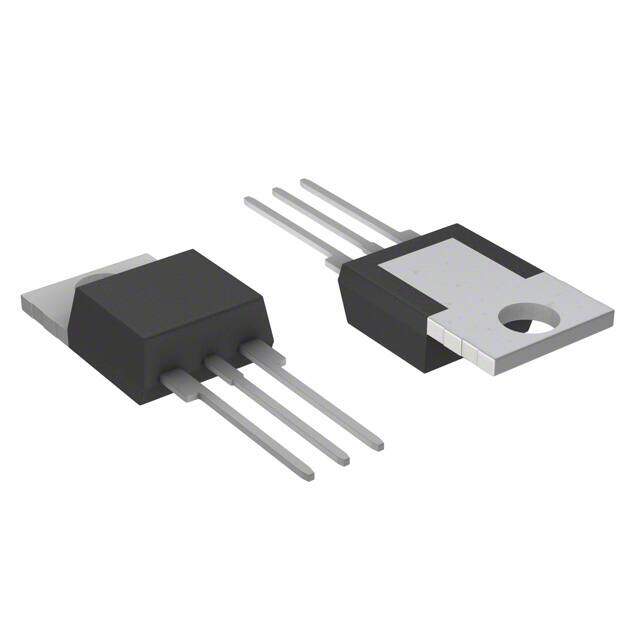

Package TO-220-3
Category Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Description
MOSFET N-CH 100V 40A TO-220AB
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3325
≥1 USD $0.3325
≥10 USD $0.27265
≥100 USD $0.2641
≥500 USD $0.25555
≥1000 USD $0.247
Inventory: 1401
Minimum: 1
-
+
Technical Details
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case TO-220-3
Number of Pins 3
Supplier Device Package TO-220-3
Technical
Operating Temperature -55°C~175°C TJ
Packaging Tube
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 175°C
Min Operating Temperature -55°C
Voltage - Rated DC 100V
Technology MOSFET (Metal Oxide)
Current Rating 40A
Number of Elements 1
Voltage 100V
Power Dissipation-Max 160W Tc
Element Configuration Single
Current 40A
Power Dissipation 160W
FET Type N-Channel
Rds On (Max) @ Id, Vgs 40mOhm @ 40A, 10V
Vgs(th) (Max) @ Id 4V @ 250μA
Current - Continuous Drain (Id) @ 25°C 40A Tc
Gate Charge (Qg) (Max) @ Vgs 300nC @ 20V
Rise Time 30ns
Drain to Source Voltage (Vdss) 100V
Drive Voltage (Max Rds On,Min Rds On) 10V
Vgs (Max) ±20V
Fall Time (Typ) 20 ns
Turn-Off Delay Time 42 ns
Continuous Drain Current (ID) 40A
Threshold Voltage 4V
Gate to Source Voltage (Vgs) 20V
Drain to Source Breakdown Voltage 100V
Drain to Source Resistance 40mOhm
Rds On Max 40 mΩ
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
