BD239ATU
RoHS
/

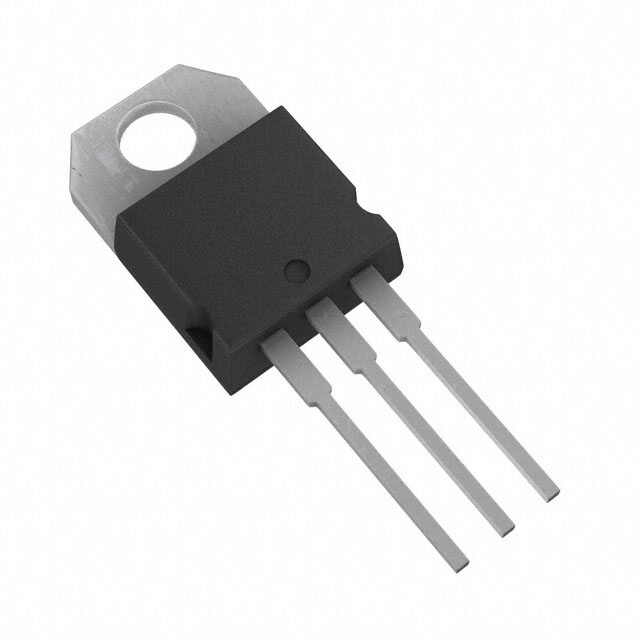

Package TO-220-3
Category Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Description
TRANS NPN 60V 2A TO-220
PDF
/
Buying Options
Total Price: USD $2.39
Unit Price: USD $2.39305
≥1 USD $2.39305
≥10 USD $1.96365
≥100 USD $1.9019
≥500 USD $1.8411
≥1000 USD $1.77935
Inventory: 1476
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
hFE Min 15
Emitter Base Voltage (VEBO) 5V
Collector Base Voltage (VCBO) 60V
Collector Emitter Saturation Voltage 700mV
Transition Frequency 3MHz
Collector Emitter Breakdown Voltage 60V
Vce Saturation (Max) @ Ib, Ic 700mV @ 200mA, 1A
JEDEC-95 Code TO-220AB
Current - Collector Cutoff (Max) 300μA
DC Current Gain (hFE) (Min) @ Ic, Vce 15 @ 1A 4V
Max Collector Current 2A
Collector Emitter Voltage (VCEO) 70V
Transistor Type NPN
Polarity/Channel Type NPN
Transistor Application SWITCHING
Power Dissipation 30W
Element Configuration Single
Number of Elements 1
Qualification Status Not Qualified
Base Part Number BD239
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Current Rating 2A
Peak Reflow Temperature (Cel) NOT SPECIFIED
Max Power Dissipation 30W
Voltage - Rated DC 60V
Subcategory Other Transistors
ECCN Code EAR99
Number of Terminations 3
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2000
Packaging Tube
Operating Temperature 150°C TJ
Physical
Transistor Element Material SILICON
Weight 1.8g
Number of Pins 3
Package / Case TO-220-3
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Lifecycle Status LAST SHIPMENTS (Last Updated: 2 days ago)
Factory Lead Time 6 Weeks
Alternative Model
