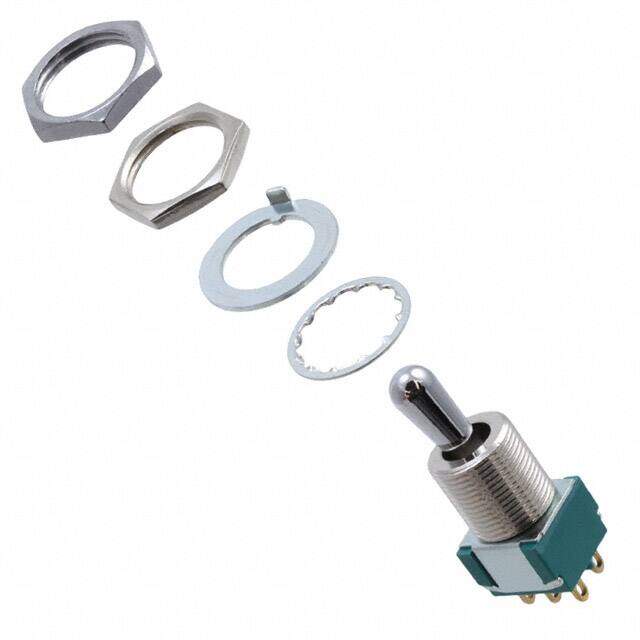

1-1571926-5
RoHS
/
Package /
Category Switches / Toggle Switches
Description
SWITCH TOGGLE DPDT 6A 125V
PDF
/
Inventory: 9622
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Panel
Mounting Type Panel Mount
Actuator Material Copper Alloy, Chrome Plated
Technical
Operating Temperature -20°C~80°C
Packaging Bulk
Published 2011
Series MTG Green
Feature Epoxy Sealed Terminals
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder
Max Operating Temperature 80°C
Min Operating Temperature -20°C
Voltage - Rated DC 28V
Current Rating (Amps) 6A AC 4A DC
Current Rating 4A
Termination Style Solder Lug
Voltage - Rated AC 125V
Actuator Type Standard Round
Circuit DPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 11.94mm Dia
Electrical Life 80,000 Cycles
Throw Configuration DPDT
Illumination Non-Illuminated
Illumination Type Non-Illuminated
Bushing Thread 15/32-32
Dimensions
Actuator Length 11.50mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
