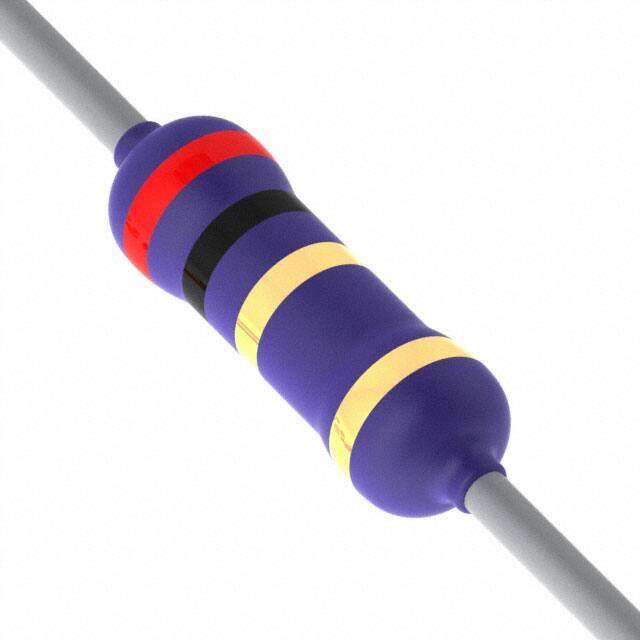

RSF1JT2R00
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Resistors / Through Hole Resistors
Description
Axial FIXED RESISTOR RSF 0.177Diax0.433L 4.50mmx11.00mm 1W 2Ohm ±200ppm/C
PDF
/
Inventory: 9734
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Diameter 4.5mm
Technical
Working Voltage 350V
Rated Power Dissipation (P) 1W
Resistor Type FIXED RESISTOR
Construction Tubular
Max Power Dissipation 1W
Packing Method TR, 13.5 INCH
Power Rating 1W
Additional Feature FLAME PROOF
Composition Metal Oxide Film
Terminal Finish Matte Tin (Sn)
Resistance 2Ohm
Temperature Coefficient ±200ppm/°C
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Flame Retardant Coating, Safety
JESD-609 Code e3
Tolerance ±5%
Size / Dimension 0.177Diax0.433L 4.50mmx11.00mm
Series RSF
Packaging Tape & Reel (TR)
Operating Temperature -55°C~235°C
Physical
Terminal Shape WIRE
Package / Case Axial
Mount Axial, Through Hole
Contact Plating Copper, Tin
Supply Chain
Factory Lead Time 20 Weeks
