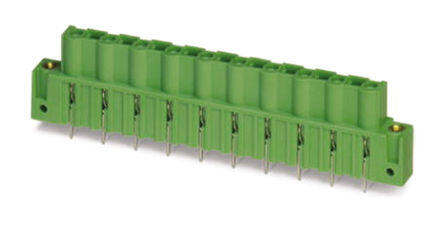

1859124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 5 Pos 7.62mm pitch Thru Hole Invert Hdr
PDF
/
Buying Options
Total Price: USD $7.24
Unit Price: USD $7.236463
≥1 USD $7.236463
≥10 USD $6.826849
≥100 USD $6.440428
≥500 USD $6.075873
≥1000 USD $5.731956
Inventory: 7111
Minimum: 1
-
+
Technical Details
Technical
Contact Tail Length 0.142 3.60mm
Number of Levels 1
Current 10A
Contact Mating Finish Tin
Number of Decks 1
Voltage - IEC 1kV
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Current - IEC 12A
Fastening Method PLUG IN
Voltage 300V
Termination Style Solder
Current Rating 12A
Insulation Height 0.748 19.00mm
Pitch 0.300 7.62mm
Voltage - Rated 500V
Number of Rows 1
Color Green
Number of Positions 5
Type Header, Female Sockets
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Mating and Mounting Flange, Retention Latches
Series COMBICON GICV
Published 2011
Packaging Bulk
Compliance
Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
Physical
Weight 178.999995g
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 6 Weeks
