RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets

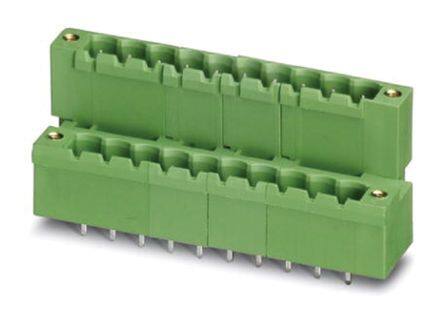

Description TERM BLOCK HDR 10POS VERT 5.08MM
PDF
/
Buying Options
Total Price: USD $31.33
Unit Price: USD $31.32842
≥1 USD $31.32842
≥200 USD $12.501434
≥500 USD $12.082619
≥1000 USD $11.876493
Inventory: 8631
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Mount Through Hole
Mounting Type Through Hole
Housing Material Polybutylene Terephthalate (PBT)

Technical

Packaging Bulk
Published 2014
Series COMBICON MDSTBV
Feature Mating Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 10
Color Green
Number of Rows 1
Additional Feature PBT, 94V-0
Pitch 0.200 5.08mm
Insulation Height 0.870 22.10mm
Termination Style Solder
Voltage 300V
Contact Tail Length 0.154 3.90mm
Number of Levels 2
Current 12A
Contact Mating Finish Tin
Voltage - UL 300V
Number of Decks 1
Voltage - IEC 400V
Positions Per Level 5
Number of Ways 5
Safety Approval UL
Header Orientation Vertical
Current - IEC 10A

Compliance

Material Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
