1803604
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

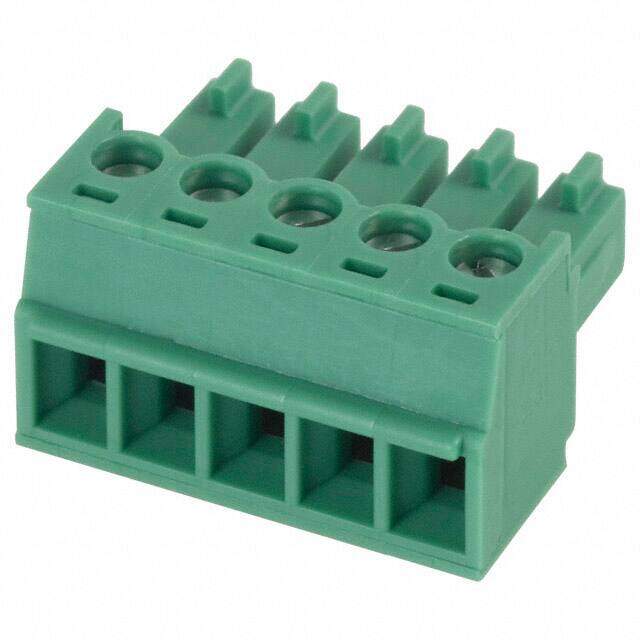

TERM BLOCK PLUG 5POS STR 3.81MM
PDF
/
Buying Options
Total Price: USD $4.79
Unit Price: USD $4.7872
≥1 USD $4.7872
≥10 USD $4.59008
≥100 USD $4.390848
≥500 USD $4.27108
≥1000 USD $3.99168
≥3000 USD $3.672363
Inventory: 5437
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Thickness 15.24mm
Width 19.84mm
Length 19.84mm
Height 11.1mm
Technical
Stripping Length 7mm
Screw Size M2
Wire Gauge or Range - mm2 0.14-1.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 5
Torque - Screw 0.22-0.25 Nm (1.9-2.2 Lb-In)
Voltage - IEC 320V
Wire Gauge or Range - AWG 14-30 AWG
Number of Decks 1
Wire/Cable Gauge 28 AWG
Wire Gauge (Min) 28 AWG
Wire Gauge (Max) 16 AWG
Current 8A
Number of Levels 1
Max Current Rating 8A
Max Supply Voltage 160V
Voltage 300V
Number of Contacts 5
Approval Agency CSA, UL, VDE
Voltage - Rated AC 160V
Termination Style Screw - Rising Cage Clamp
Current Rating 8A
Insulation Height 0.437 11.10mm
Depth 16.1mm
Orientation Right Angle
Pitch 0.150 3.81mm
Voltage - Rated DC 160V
Additional Feature PA, 94V-0
Gender Male
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Screw, Socket
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MC
Published 2001
Packaging Bulk
Physical
Weight 97.999992g
Housing Material Polyamide (PA), Nylon
Insulation Material Nylon
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Plating Tin
Supply Chain
Factory Lead Time 5 Weeks
