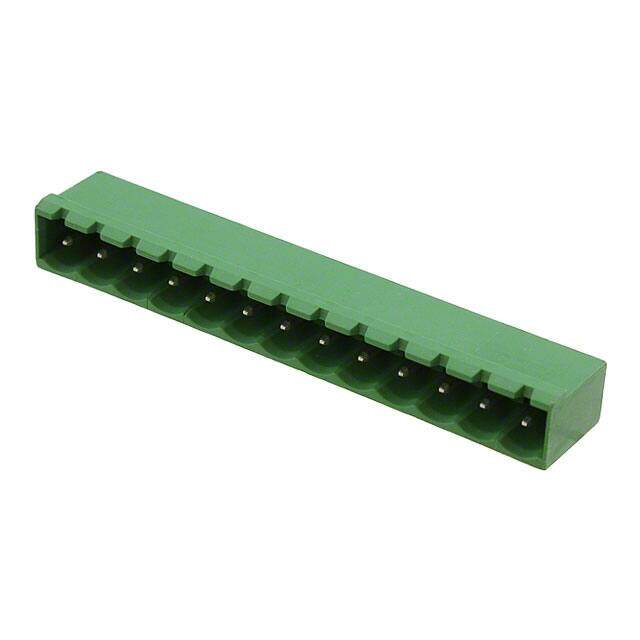

1757572
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
Pluggable Terminal Blocks 13 Pos 5mm pitch Through Hole Header
PDF
/
Buying Options
Total Price: USD $4.66
Unit Price: USD $4.657017
≥1 USD $4.657017
≥10 USD $4.393414
≥100 USD $4.144731
≥500 USD $3.910128
≥1000 USD $3.688792
Inventory: 3041
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 67mm
Technical
Header Orientation 90°, Right Angle
Safety Approval UL
Number of Ways 13
Voltage - IEC 400V
Current - UL 15A
Number of Decks 1
Number of Poles 13
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.138 3.50mm
Voltage 300V
Approval Agency CB, CSA, UL, VDE
Termination Style Solder
Current Rating 12A
Insulation Height 0.339 8.61mm
Depth 12mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (4 Side)
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBA
Published 2012
Packaging Bulk
Physical
Weight 1.50003kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
