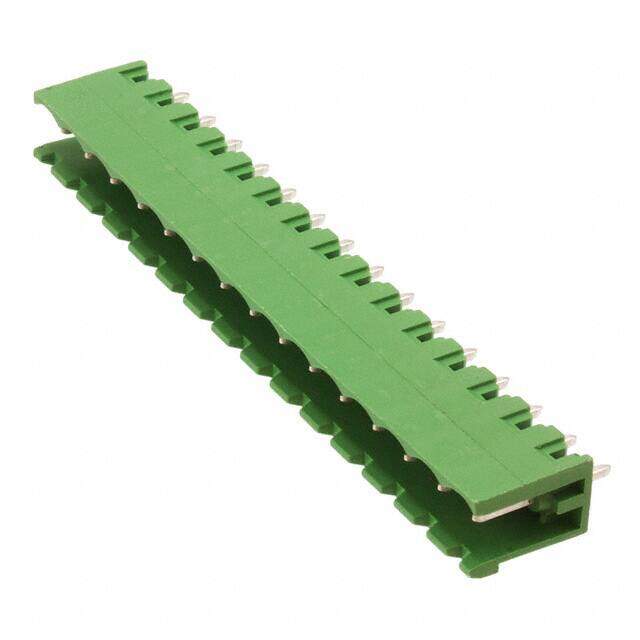

1753699
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
MSTBV Series; 5mm Pitch 15 Way 1 Row Straight PCB Header; Solder Term; 12A
PDF
/
Buying Options
Total Price: USD $6.95
Unit Price: USD $6.946021
≥1 USD $6.946021
≥10 USD $6.552853
≥100 USD $6.181928
≥500 USD $5.832011
≥1000 USD $5.501906
Inventory: 6003
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status RoHS Compliant
Material Flammability Rating UL94 V-0
Dimensions
Width 75mm
Length 75mm
Height 15.9mm
Technical
Header Orientation Vertical
Safety Approval UL
Number of Ways 15
Voltage - IEC 400V
Number of Decks 1
Number of Poles 15
Current 12A
Number of Levels 1
Max Current Rating 12A
Contact Tail Length 0.154 3.90mm
Voltage 300V
Approval Agency CB, CSA, VDE, cULus
Termination Style Solder
Current Rating 12A
Reach Compliance Code unknown
Insulation Height 0.472 12.00mm
Depth 8.6mm
Orientation Straight
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature PBT, 94V-0
Voltage - Rated 250V
Number of Rows 1
Color Green
Type Header, Male Pins, Shrouded (2 Side)
Connector Type Plug
ECCN Code EAR99
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Series COMBICON MSTBV
Published 2010
Packaging Bulk
Physical
Weight 1.200205kg
Housing Material Polyamide (PA), Nylon
Mounting Type Through Hole
Mount Through Hole
Contact Plating Tin
Supply Chain
Factory Lead Time 4 Weeks
