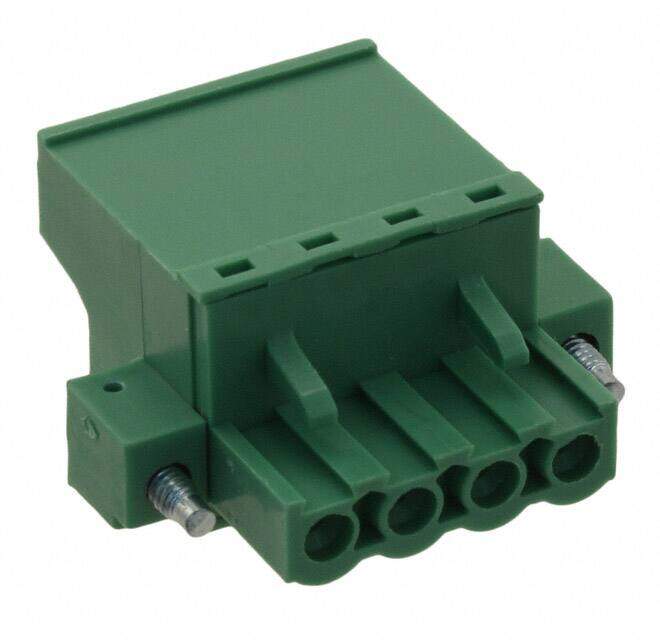

20020012-G041B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description
4 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm)180° Free Hanging (In-Line)
PDF
/
Buying Options
Total Price: USD $2.01
Unit Price: USD $2.00649
≥1 USD $2.00649
≥10 USD $1.89292
≥100 USD $1.785769
≥500 USD $1.68469
≥1000 USD $1.589329
Inventory: 1272
Minimum: 1
-
+
Technical Details
Physical
Contact Material Copper Alloy
Contact Plating Tin
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Thermoplastic Resin
Technical
Operating Temperature -40°C~115°C
Packaging Bulk
Series 03-500
Feature Mating Flange, Retention Latches (Non-Wire Side)
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Terminal Block
Type Plug, Female Sockets
Number of Positions 4
Max Operating Temperature 115°C
Min Operating Temperature -40°C
Color Green
Number of Rows 1
Voltage - Rated 300V
Pitch 0.197 5.00mm
Orientation Straight
Depth 15mm
Insulation Height 1.083 27.51mm
Current Rating 10A
Termination Style Screw - Pressure Clip
Number of Contacts 4
Housing Color Green
Voltage 300V
Number of Circuits 4
Max Voltage Rating (AC) 300V
Max Current Rating 10A
Number of Levels 1
Current 10A
Wire Gauge (Max) 22 AWG
Wire Gauge (Min) 12 AWG
Wire/Cable Gauge 12 AWG
Contact Mating Finish Tin
Voltage - UL 300V
Wire Gauge or Range - AWG 12-22 AWG
Current - UL 10A
Torque - Screw 0.4 Nm (3.5 Lb-In)
Positions Per Level 4
Plug Wire Entry 180°
Wire Gauge or Range - mm2 1-2.5mm2
Wire Strip Length 6-7mm
Number of Positions Per Level 4
Screw Size M2.5
Max Supply Voltage (AC) 300V
Dimensions
Length 29.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
Lead Free Lead Free
