20020002-G101B01LF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Terminal Blocks - Headers, Plugs and Sockets
Description

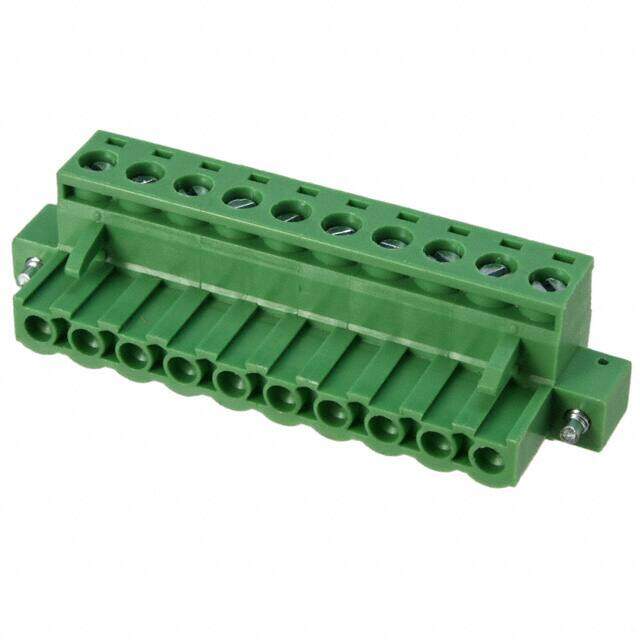

10 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm)180° Free Hanging (In-Line)
PDF
/
Inventory: 7187
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Length 60mm
Technical
Max Supply Voltage (AC) 300V
Wire Cross Section 2.5 mm2
Screw Size M3
Wire Strip Length 7-8mm
Wire Gauge or Range - mm2 1-2.5mm2
Plug Wire Entry 180°
Safety Approval UL
Number of Ways 10
Torque - Screw 0.56 Nm (5.0 Lb-In)
Wire Gauge or Range - AWG 12-24 AWG
Number of Decks 1
Contact Mating Finish Tin
Wire/Cable Gauge 12 AWG
Wire Gauge (Min) 12 AWG
Wire Gauge (Max) 24 AWG
Current 12A
Number of Levels 1
Max Current Rating 12A
Max Voltage Rating (AC) 300V
Voltage 300V
Number of Contacts 10
Termination Style Screw - Rising Cage Clamp
Current Rating 12A
Insulation Height 0.594 15.09mm
Depth 18.2mm
Orientation Right Angle
Pitch 0.197 5.00mm
HTS Code 8536.69.40.40
Additional Feature THERMOPLASTIC, UL 94V-0
Voltage - Rated 300V
Number of Rows 1
Color Green
Type Plug, Female Sockets
Connector Type Terminal Block
ECCN Code EAR99
Termination Screw
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Mating Flange, Retention Latches (Non-Wire Side)
Series 01-500
Packaging Bulk
Operating Temperature -40°C~115°C
Physical
Housing Material Thermoplastic Resin
Mounting Type Free Hanging (In-Line)
Mount Cable, Free Hanging
Contact Material Copper Alloy
