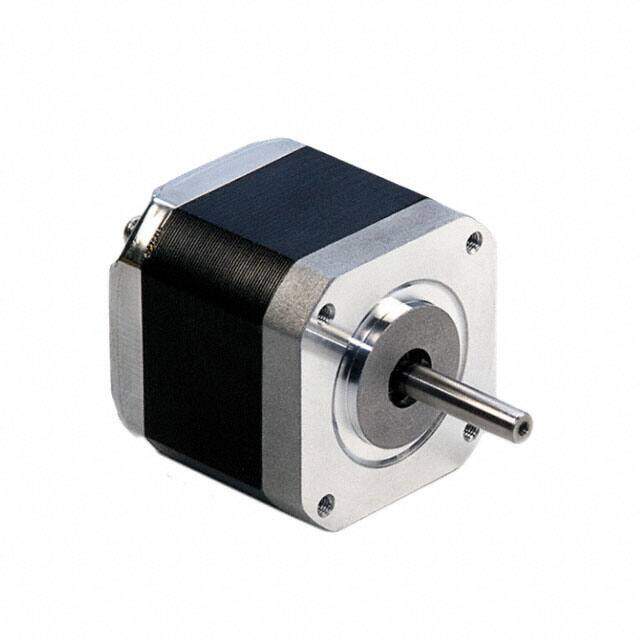

WO-4418F-01
RoHS
RoHS compliant
RoHS compliantPackage /
Category Motors, Solenoids, Driver Boards/Modules / Stepper Motors
Description
STEPPER MOTOR
PDF
/
Buying Options
Total Price: USD $40.45
Unit Price: USD $40.4536
≥1 USD $40.4536
≥10 USD $39.75664
≥100 USD $39.0588
≥500 USD $38.361664
≥1000 USD $37.664273
≥3000 USD $37.10623
Inventory: 123
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length - Shaft and Bearing 0.945 24.00mm
Diameter - Shaft 0.197 (5.00mm)
Technical
Rotor Inertia 0.615gcm2
NEMA Frame Size 17
Torque - Holding (oz-in / mNm) 27 / 190.7
Steps per Revolution 200
Step Angle 1.8°
Coil Type Bipolar
Coil Resistance 7.6Ohm
Termination Style Wire Leads
Current Rating (Amps) 670mA
Voltage - Rated 24VDC
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Double Round Shaft
Size / Dimension Square - 1.669 x 1.669 42.40mmx42.40mm
Packaging Tray
Operating Temperature -20°C~50°C
Physical
Mounting Hole Spacing 1.220 (31.00mm)
Supply Chain
Factory Lead Time 16 Weeks
