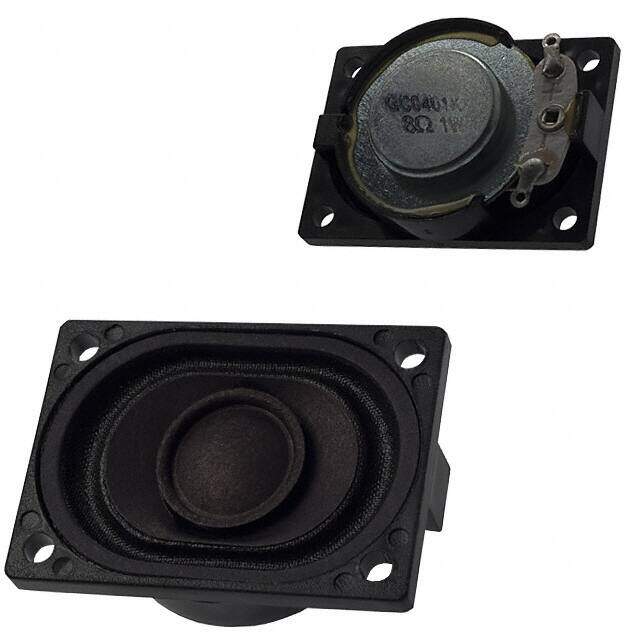

GC0401K
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 1W TOP PORT 82DB
PDF
/
Buying Options
Total Price: USD $4.09
Unit Price: USD $4.092
≥1 USD $4.092
≥10 USD $3.40384
Inventory: 1868
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 40mm
Length 28.5mm
Height Seated (Max) 0.445 11.30mm
Height 11.8mm
Technical
Efficiency - Testing 1W/500mm
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - dBA 82.00
Port Location Top
Power - Rated 1W
Frequency Range 390Hz~20kHz
Power - Max 2W
Frequency - Self Resonant 390Hz
Impedance 8Ohms
Technology Magnetic
Max Power Dissipation 2W
Power Rating 1W
Resistance 8Ohm
Type General Purpose
Termination Solder Eyelet(s)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 1.575Lx1.122W 40.00mmx28.50mm
Series GC
Published 2011
Packaging Tray
Physical
Material - Magnet Nd-Fe-B
Material - Cone Paper
Shape Oval, Rectangular Frame
Housing Material Plastic
Supply Chain
Factory Lead Time 16 Weeks
Alternative Model
