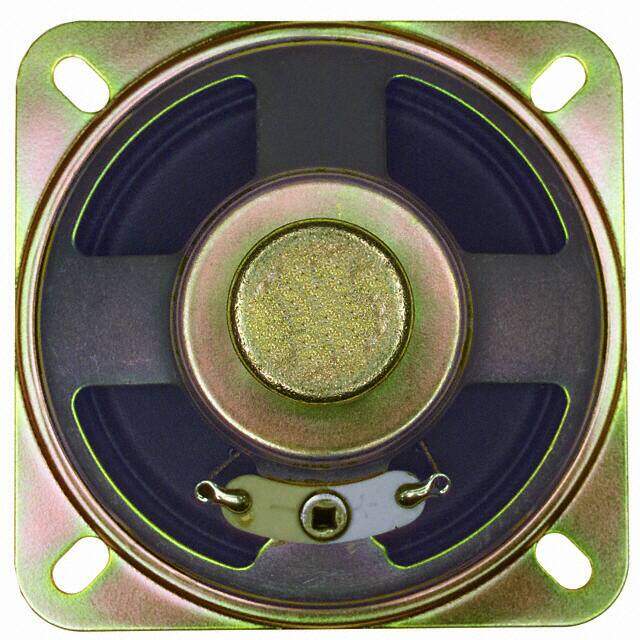

GA0506
RoHS
/
Package /
Category Audio Products / Speakers
Description
SPEAKER 8OHM 250MW TOP PORT 88DB
PDF
/
Buying Options
Total Price: USD $6.14
Unit Price: USD $6.143059
≥1 USD $6.143059
≥200 USD $2.451184
≥400 USD $2.369785
≥800 USD $2.329085
Inventory: 6037
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Housing Material Metal
Weight 9.92g
Shape Round, Square Frame
Material - Cone Paper
Material - Magnet Alnico (AlNiCo)
Technical
Packaging Bulk
Published 2012
Series GA
Size / Dimension 1.969Lx1.969W 50.00mmx50.00mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Termination Solder Eyelet(s)
Type General Purpose
Resistance 8Ohm
Power Rating 250mW
Max Power Dissipation 500mW
Technology Magnetic
Impedance 8Ohm
Frequency - Self Resonant 430Hz
Frequency Range 430Hz~4kHz
Power - Rated 250mW
Port Location Top
Efficiency - dBA 88.00
Efficiency - Type Sound Pressure Level (SPL)
Efficiency - Testing 250mW/500mm
Dimensions
Height 19mm
Height Seated (Max) 0.728 18.50mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Lead Free
