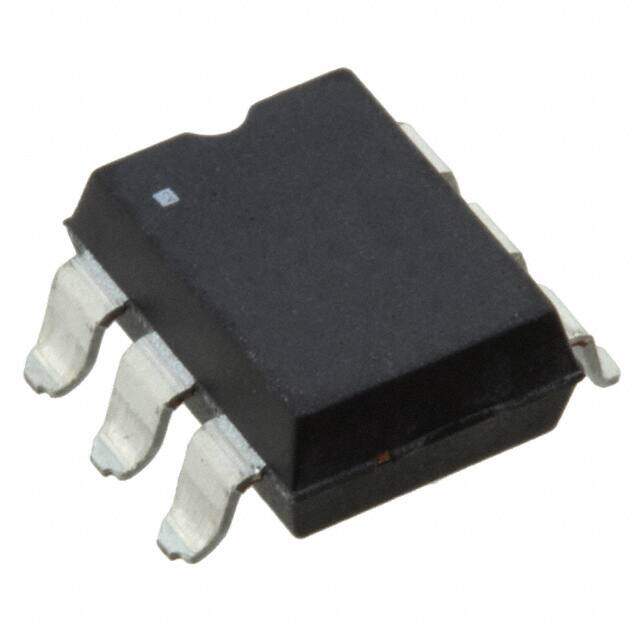

LH1511BAB
RoHS
RoHS compliant
RoHS compliantPackage 6-SMD (0.300, 7.62mm)
Category Relays / Solid State Relays
Description
VISHAY LH1511BAB SSR, MOSFET, 200V, 200mA
PDF
/
Buying Options
Total Price: USD $3.94
Unit Price: USD $3.9424
≥1 USD $3.9424
≥10 USD $3.69952
≥100 USD $3.288384
≥500 USD $3.124176
≥1000 USD $2.959704
≥3000 USD $2.630848
Inventory: 1133
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 6-SMD (0.300, 7.62mm)
Number of Pins 6
Technical
Packaging Tube
Published 2012
Series LH1511
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Gull Wing
ECCN Code EAR99
Resistance 10Ohm
Max Operating Temperature 85°C
Min Operating Temperature -40°C
HTS Code 8541.40.95.00
Termination Style Gull Wing
Output Type AC, DC
Max Output Current 300mA
Number of Elements 1
Circuit SPST-NC (1 Form B)
Voltage - Input 1.26VDC
Output Current 300mA
Throw Configuration SPST
Input Type DC
Optoelectronic Device Type TRANSISTOR OUTPUT SSR
Forward Current 900μA
Max Output Voltage 200V
Max Input Voltage 1.45V
Relay Type Relay
Voltage - Load 0V~200V
On-State Resistance (Max) 10Ohm
Max Input Current 50mA
Overall Height 3.3mm
Input Current 50mA
On-State Current-Max 0.2A
Load Current 200mA
Isolation Voltage 3.75kV
Control Current 0.0002A
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
