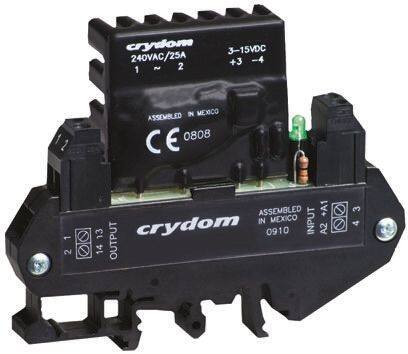

DRA1-SPF380D25R image
Favorite
DRA1-SPF380D25R image
Favorite

DRA1-SPF380D25R

Sensata-Crydom
RoHS
RoHS RoHS compliant
Package Module
Category Relays / Solid State Relays
Description Solid State Relays - Industrial Mount DIN Mt 380 VAC/8A out 4-15 VDC input
PDF
/
Inventory: 2825
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount DIN Rail
Mounting Type DIN Rail
Package / Case Module

Technical

Packaging Bulk
Published 2009
Series DRA
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Max Operating Temperature 80°C
Min Operating Temperature -30°C
Depth 22.9mm
Current Rating 8A
Termination Style Screw Terminal
Output Type AC
Circuit SPST-NO (1 Form A)
Max Supply Voltage 380V
Min Supply Voltage 48V
Max Voltage Rating (AC) 380V
Voltage - Input 4V~15VDC
Throw Configuration SPST
Max Voltage Rating (DC) 15V
Max Output Voltage 380V
Max Surge Current 250A
Relay Type Relay
Voltage - Load 48V~530V
RMS Current (Irms) 8A
Isolation Voltage 4kV
Max Supply Voltage (AC) 380V
Min Supply Voltage (AC) 48V

Dimensions

Height 69.9mm
Length 89.6mm

Compliance

REACH SVHC No SVHC
RoHS Status RoHS Compliant
