DS1D6BQ1
RoHS
RoHS compliant
RoHS compliantPackage 125
Category Switches / Snap Action, Limit Switches
Description

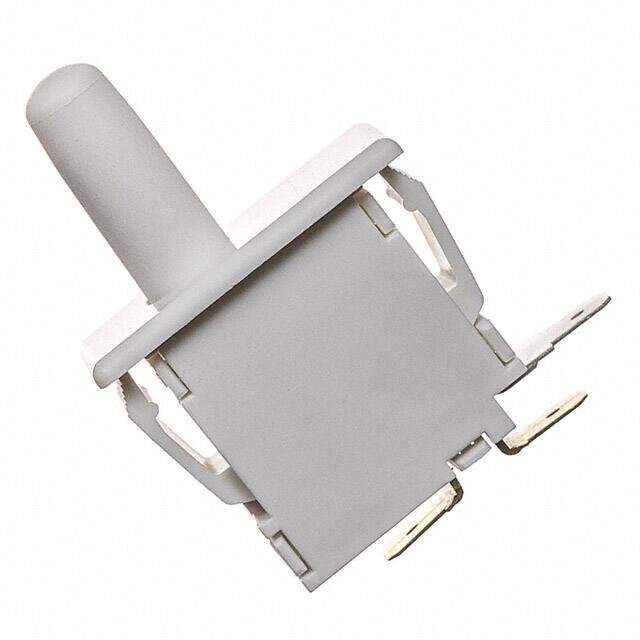

Pushbutton Switches SPDT 10A 125/250 Vac Long Button Q.C.
PDF
/
Buying Options
Total Price: USD $4.83
Unit Price: USD $4.8312
≥1 USD $4.8312
≥10 USD $3.86672
≥100 USD $3.67312
≥500 USD $3.57632
≥1000 USD $3.093024
≥3000 USD $2.899706
Inventory: 79
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Silver
Contact Plating Gold, Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Package / Case 125
Housing Material Polyamide
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2015
Series DS
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
Color White
Current Rating (Amps) 10A AC
Current Rating 10A
Termination Style Quick Connect - 0.187 (4.7mm)
Voltage - Rated AC 125V
Actuator Type Round (Pin Plunger)
Circuit SPDT
Switch Function On-Mom
Max Voltage Rating (AC) 250V
Electrical Life 50,000 Cycles
Mechanical Life 50000 cycles
Operating Force 425gf
Overtravel 0.398 (10.1mm)
Operating Position 0.770 (19.5mm)
Dimensions
Height 26.6mm
Length 31.75mm
Width 17.3mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
