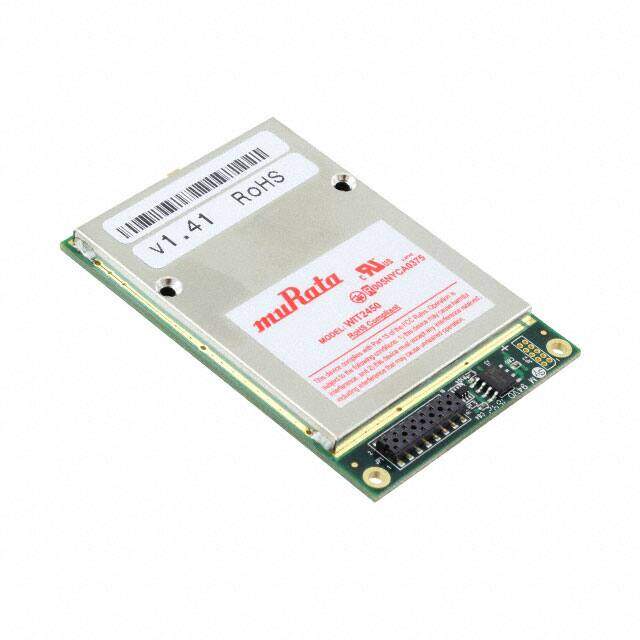

WIT2450FG
RoHS
/
Package Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF Modules 2.4GHz FHSS Wireless Tranceiver
PDF
/
Inventory: 1969
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Technical
Sensitivity (dBm) -92 dBm
Modulation FHSS
Current - Transmitting 140mA
Current - Receiving 40mA
Serial Interfaces UART
Sensitivity -92dBm
Antenna Type Antenna Not Included, MMCX
RF Family/Standard General ISM > 1GHZ
Power - Output 24dBm
Data Rate 460.8kbps
Interface UART
Operating Supply Voltage 10V
Frequency 2.4GHz
Voltage - Supply 3.3V~10V
Min Operating Temperature -40°C
Max Operating Temperature 70°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Series WIT
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Package / Case Module
Mounting Type Chassis Mount
Mount Chassis Mount
