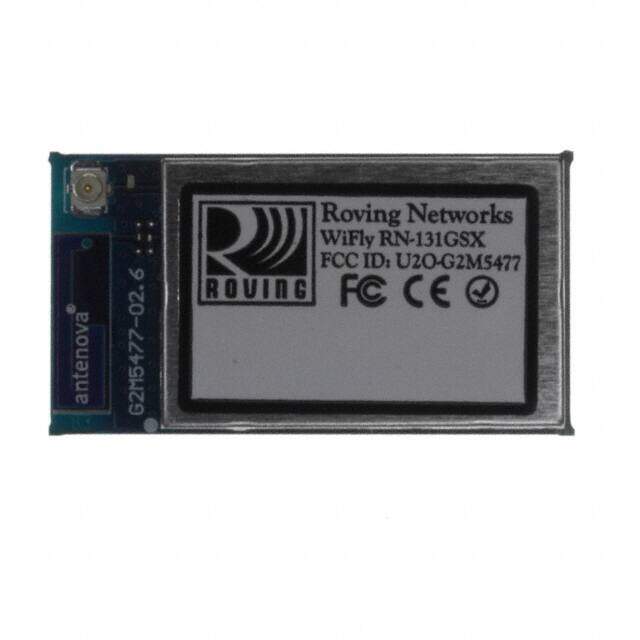

RN131G-I/RM
RoHS
RoHS compliant
RoHS compliantPackage Module
Category RF/IF and RFID / RF Transceiver Modules
Description
RF TXRX MOD WIFI CHIP + U.FL ANT
PDF
/
Buying Options
Total Price: USD $43.51
Unit Price: USD $43.5072
≥1 USD $43.5072
≥10 USD $39.786912
Inventory: 1070
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Module
Number of Pins 44
Technical
Operating Temperature -30°C~85°C
Packaging Tray
Published 2012
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 44
Terminal Position UNSPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 2mm
Depth 20mm
Frequency 2.4GHz
Base Part Number RN131
Operating Supply Voltage 3.3V
Number of Channels 14
Interface SPI, UART
Memory Size 8MB Flash 2MB ROM 128kB RAM
Data Rate 54Mbps
Protocol 802.11b/g
Telecom IC Type LAN SWITCHING CIRCUIT
Power - Output 18dBm
RF Family/Standard WiFi
Antenna Type Integrated, Chip + U.FL
Sensitivity -85dBm
Serial Interfaces SPI, UART
Current - Receiving 40mA
Current - Transmitting 140mA
Modulation CDK, DBPSK, DQPSK, DSSS, OFDM
Sensitivity (dBm) -85 dBm
Firmware Version 4
Dimensions
Height 3.5mm
Length 37mm
Width 20mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
