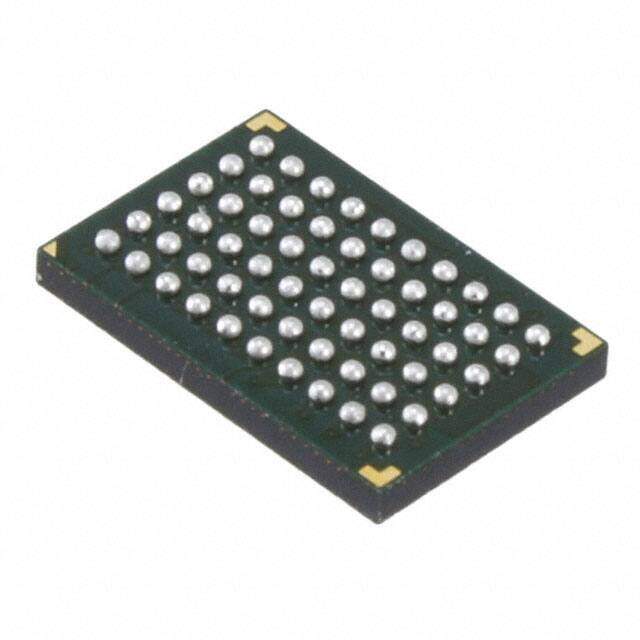

LMX5453SM/NOPB
RoHS
RoHS compliant
RoHS compliantPackage 60-LFBGA
Category RF/IF and RFID / RF Transceiver ICs
Description
IC RF TXRX+MCU BLUETOOTH 60LFBGA
PDF
/
Inventory: 4231
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Lifecycle Status ACTIVE (Last Updated: 2 days ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 60-LFBGA
Number of Pins 60
Technical
Operating Temperature -40°C~85°C
Packaging Tray
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 60
Type TxRx + MCU
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Technology CMOS
Voltage - Supply 2.5V~3.6V
Terminal Position BOTTOM
Terminal Form BALL
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 2.75V
Terminal Pitch 0.8mm
Frequency 2.4GHz
Base Part Number LMX5453
Pin Count 60
Operating Supply Voltage 3.3V
Interface SPI, UART, USB
Memory Size 200kB ROM 16.6kB RAM
Nominal Input Voltage 3.6V
Protocol Bluetooth v2.0
RF Family/Standard Bluetooth
Data Rate (Max) 12Mbps
Serial Interfaces JTAG, SPI, UART, USB
Current - Receiving 12mA~26mA
Current - Transmitting 12mA~27mA
Sensitivity (dBm) -80 dBm
GPIO 3
Dimensions
Height 1.3mm
Length 9mm
Width 6mm
Thickness 1.2mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
