MASWSS0103TR
RoHS
RoHS compliant

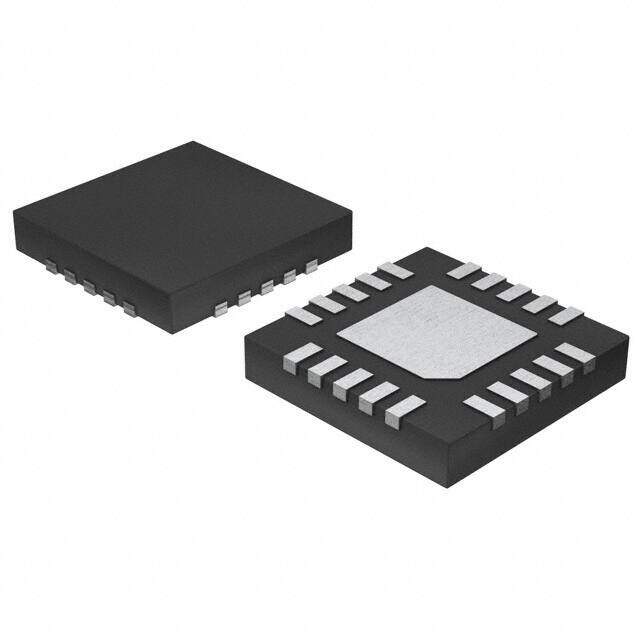

RoHS compliantPackage 20-VFQFN Exposed Pad
Category RF/IF and RFID / RF Switches
Description
IC RF SWITCH SPDT 1GHZ 20QFN
PDF
/
Buying Options
Total Price: USD $1.88
Unit Price: USD $1.88005
≥1 USD $1.88005
≥10 USD $1.5428
≥100 USD $1.49435
≥500 USD $1.4459
≥1000 USD $1.39745
Inventory: 109706
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Technical
On Time-Nom 0.018 μs
Input Power-Max (CW) 32.04dBm
RF Type CATV
Insertion Loss (dB) 1.2 dB
Isolation 63dB
Insertion Loss 1dB
Frequency Range 5MHz~1GHz
Bandwidth 1 GHz
Topology Absorptive
Impedance 75Ohm
Circuit SPDT
Frequency 1GHz
Construction COMPONENT
Number of Functions 1
Technology GAAS
Subcategory RF/Microwave Switches
Terminal Finish Matte Tin (Sn)
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Published 2003
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C
Physical
Number of Pins 20
Mounting Feature SURFACE MOUNT
Surface Mount YES
Package / Case 20-VFQFN Exposed Pad
Supply Chain
Factory Lead Time 11 Weeks
