19-09-2099
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description

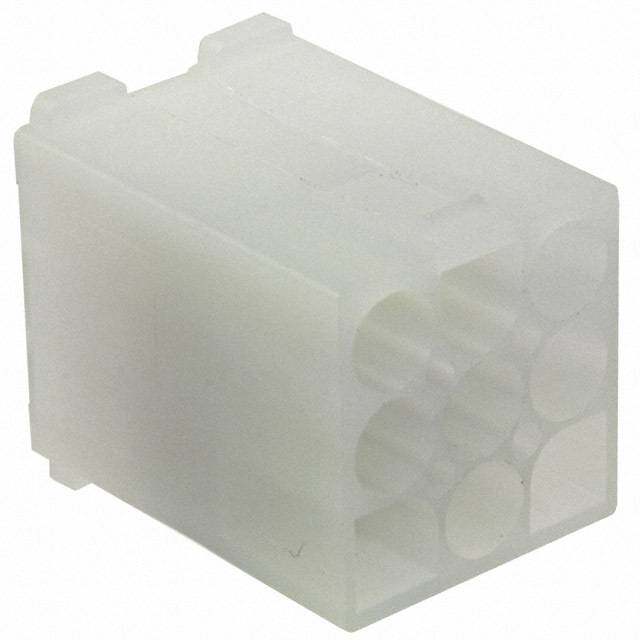

CONN PLUG 9POS .093
PDF
/
Buying Options
Total Price: USD $1.04
Unit Price: USD $1.040479
≥1 USD $1.040479
≥10 USD $0.981587
≥100 USD $0.926019
≥500 USD $0.873605
≥1000 USD $0.824162
Inventory: 3709
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material NOT SPECIFIED
Mount Free Hanging, Surface Mount
Shell Material POLYAMIDE66
Housing Material Nylon
Technical
Packaging Bulk
Published 2007
Pbfree Code yes
Part Status Active
Termination Crimp
Connector Type Male or Female, Plug, Socket
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Color Natural
Number of Rows 3
Additional Feature POLARIZED
Fastening Type Ramp
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 6.7mm
Orientation Straight
Depth 30.2mm
Current Rating 9A
Number of Conductors ONE
Reference Standard UL, CSA
Reliability COMMERCIAL
Approval Agency CSA, TUV, UL
Row Spacing - Mating 6.7056 mm
Number of Contacts 9
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
Empty Shell YES
Operating Supply Voltage 600V
Contact Style HYBRID
Current Rating (Max) 12A
Glow Wire Compliant Non-compliant
Dimensions
Height 850μm
Length 21.6mm
Width 30.2mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
Flammability Rating UL94 V-2
