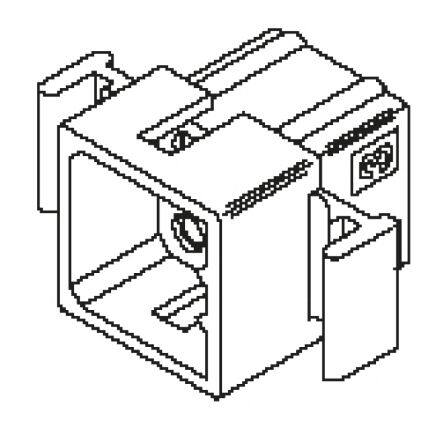

03-06-2091
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Housings
Description
Rectangular Connector Housing
PDF
/
Inventory: 3305
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Radiation Hardening No
Technical
Termination Type CRIMP
Body/Shell Style PLUG
Contact Style RND PIN-SKT
Operating Supply Voltage 250V
Empty Shell YES
Mating Information MULTIPLE MATING PARTS AVAILABLE
Number of Contacts 9
Reliability COMMERCIAL
Number of Conductors ONE
Current Rating 5A
Depth 19mm
Orientation Straight
Pitch 3.68mm
Option GENERAL PURPOSE
Mixed Contacts NO
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Subcategory Headers and Edge Type Connectors
Gender Male
Number of Rows 3
Color Natural
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Connector Type RECTANGULAR POWER CONNECTOR
Pbfree Code yes
Published 2009
Packaging Bulk
Physical
Mounting Option 1 LOCKING
Housing Material Nylon
Mounting Type PANEL
Supply Chain
Factory Lead Time 7 Weeks
