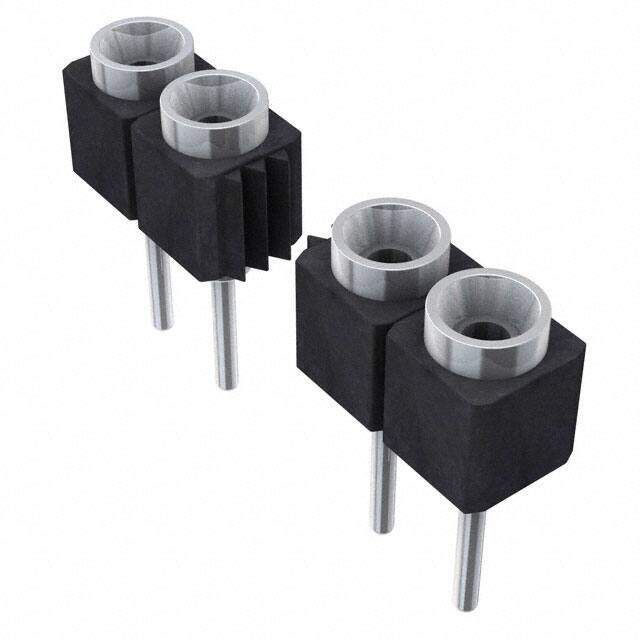

SS-124-TT-2-N image
Favorite
SS-124-TT-2-N image
Favorite

SS-124-TT-2-N

Samtec Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description WITH NON-FLUSH Rectangular Connector Header
PDF
/
Inventory: 3135
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 2.54mm
Length 61mm
Height 3.3mm

Technical

Device Socket Type IC SOCKET
Housing Color Black
PCB Contact Pattern RECTANGULAR
Number of Contacts 24
Contact Length - Post 0.125 3.18mm
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.100 2.54mm
Contact Type Female Socket
Contact Finish - Mating Tin
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature WITH NON-FLUSH
Gender Female
Number of Rows 1
Number of Positions 24
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e3
Series SS
Published 2008
Packaging Tube
Operating Temperature -55°C~125°C

Physical

Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
