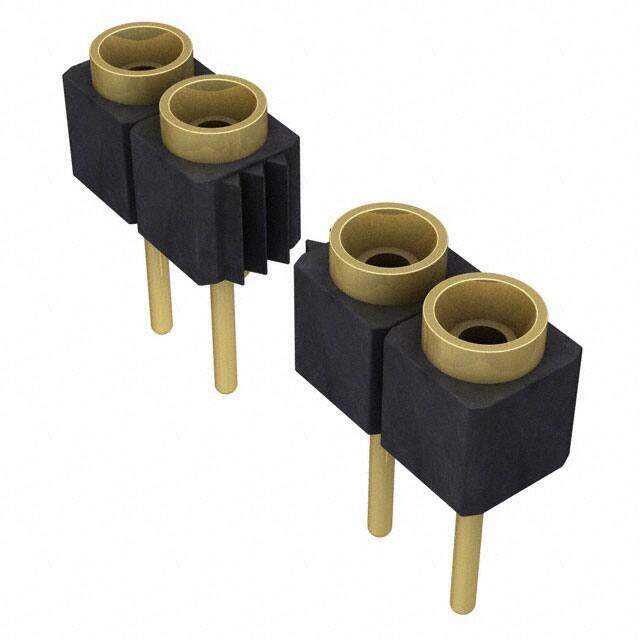

SS-121-G-2-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
WITH NON-FLUSH Rectangular Connector Header
PDF
/
Inventory: 2373
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Width 2.54mm
Length 53.3mm
Height 3.3mm
Technical
Device Socket Type IC SOCKET
Housing Color Black
PCB Contact Pattern RECTANGULAR
Number of Contacts 21
Contact Length - Post 0.125 3.18mm
Pitch - Mating 0.100 2.54mm
Current Rating 1A
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.300 7.62mm
Contact Type Female Socket
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature WITH NON-FLUSH
Gender Female
Number of Rows 1
Number of Positions 21
Connector Type Receptacle
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
JESD-609 Code e4
Series SS
Published 2008
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Plastic
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Beryllium Copper
