SL-112-TT-10
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

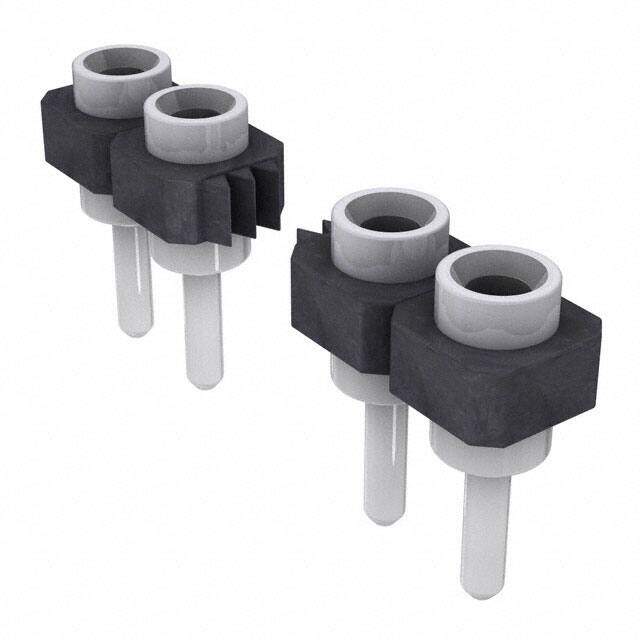

SAMTEC SL-112-TT-10 Board-To-Board Connector, Vertical, SL Series, 12 Contacts, Receptacle, 2.54 mm, Through Hole
PDF
/
Inventory: 6335
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Beryllium Copper
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Plastic
Technical
Operating Temperature -55°C~105°C
Packaging Tube
Published 2008
Series SL
JESD-609 Code e3
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 12
Number of Rows 1
Additional Feature LOW PROFILE
Fastening Type Push-Pull
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.122 3.10mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Contact Length - Post 0.108 2.75mm
Housing Color Black
Dimensions
Height 1.27mm
Length 30.5mm
Width 2.54mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
