M50-3201045
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description

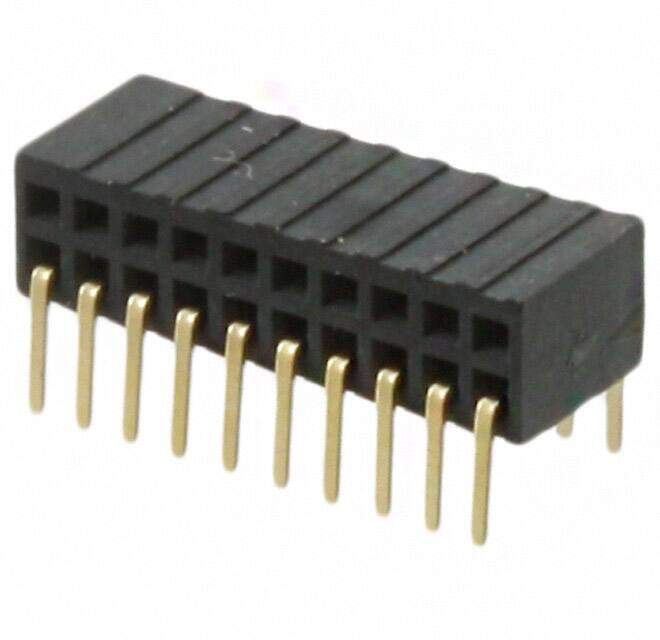

CONN RCPT 20P 0.05 GOLD PCB R/A
PDF
/
Buying Options
Total Price: USD $2.46
Unit Price: USD $2.4552
≥1 USD $2.4552
≥10 USD $2.060001
≥100 USD $1.961863
≥500 USD $1.727
Inventory: 5593
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Post 10.0μin 0.25μm
Contact Finish Thickness - Mating 10.0μin 0.25μm
Plating Thickness 10μin
Length 13.2mm
Technical
Insertion Force-Max .973 N
Durability 300 Cycles
PCB Contact Row Spacing 5.08 mm
Dielectric Withstanding Voltage 500VAC V
Polarization Key POLARIZED HOUSING
Max Current Rating 1A
Mating Contact Pitch 0.05 inch
Insulation Resistance 1GOhm
Contact Resistance 20mOhm
Rated Current (Signal) 1A
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Female
Body Breadth 0.136 inch
PCB Contact Pattern RECTANGULAR
Lead Pitch 1.27mm
Number Of PCB Rows 2
Contact Length - Post 0.094 2.40mm
Row Spacing - Mating 0.050 (1.27mm)
Reliability COMMERCIAL
Voltage - Rated AC 150V
Number of Conductors ONE
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.136 3.46mm
Depth 4.83mm
Orientation Right Angle
Mixed Contacts NO
Contact Type Female Socket
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 500V
Number of Rows 2
Applications General Purpose, Medical, Telecommunications
Number of Positions 20
Connector Type Receptacle
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series Archer M50
Published 2005
Packaging Tube
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA9T), Nylon 9T
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
