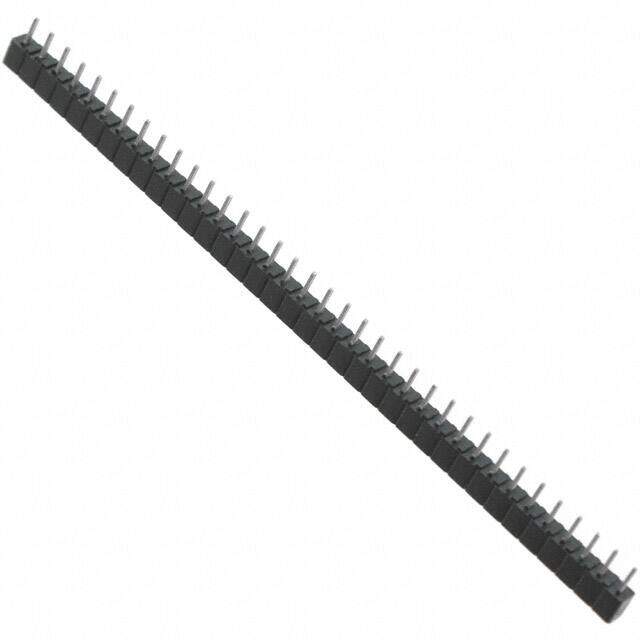

929984-01-36
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Receptacles, Female Sockets
Description
Header Connector, Pcb Mount, Plug, 36 Contacts, Skt, 0.1 Pitch, Pc Tail Terminal
PDF
/
Buying Options
Total Price: USD $4.71
Unit Price: USD $4.708
≥1 USD $4.708
≥10 USD $4.27504
≥100 USD $3.766928
Inventory: 256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Contact Plating Lead, Tin
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material PBT
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2007
Series 929
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Receptacle
Number of Positions 36
Color Black
Number of Rows 1
Gender Female
Voltage - Rated 1000V
Fastening Type Push-Pull
Contact Finish - Mating Tin-Lead
Contact Type Forked
Current Rating (Amps) 1A
Pitch 2.54mm
Insulation Height 0.150 3.81mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Contact Length - Post 0.125 3.18mm
Lead Pitch 2.54mm
Contact Finish - Post Tin-Lead
Contact Gender Female
Housing Color Black
Dimensions
Height 3.8mm
Length 91.4mm
Width 2.54mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
