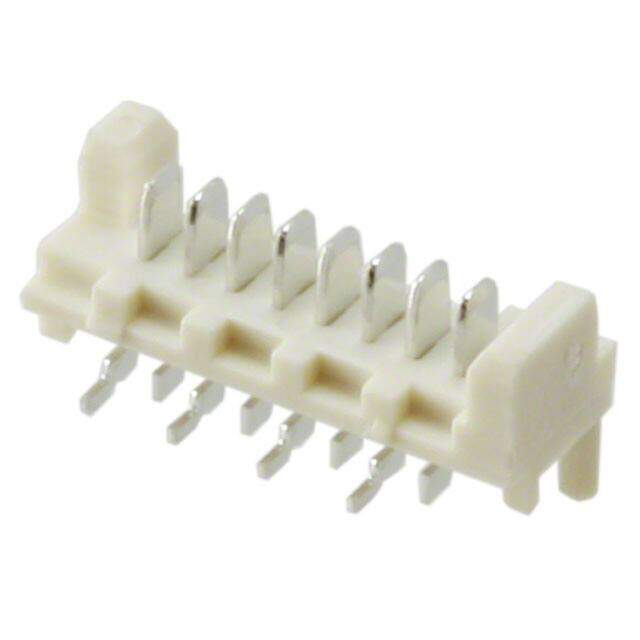

0908140608
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Conn Picoflex HDR 8 POS 2.54mm Solder ST SMD Picoflex? Tube
PDF
/
Inventory: 1594
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Contact Finish Thickness - Mating 118.1μin 3.00μm
Technical
Withdrawl Force-Min .2502 N
Durability 30 Cycles
Dielectric Withstanding Voltage 750VAC V
Polarization Key POLARIZING PEG
Mating Contact Pitch 0.05 inch
Body Depth 0.203 inch
UL Flammability Code 94V-0
Operating Temperature (Min) -40°C
PCB Contact Pattern STAGGERED
Contact Length - Mating 0.085 2.15mm
Number Of PCB Rows 2
Shrouding Shrouded - 2 Wall
Body Length or Diameter 0.549 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Natural
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.161 4.10mm
Total Number of Contacts 8
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Blade
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Fastening Type Push-Pull
Additional Feature POLARIZED
Voltage - Rated 250V
Number of Rows 1
Applications Automotive, General Purpose, Industrial, Medical
Number of Positions 8
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Series Picoflex PF-50 90814
Packaging Bulk
Physical
Board Mounting Option PEG
Mounting Option 1 LOCKING
Insulation Material Polyamide (PA), Nylon, Glass Filled
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Cartridge Brass
