0313862001
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

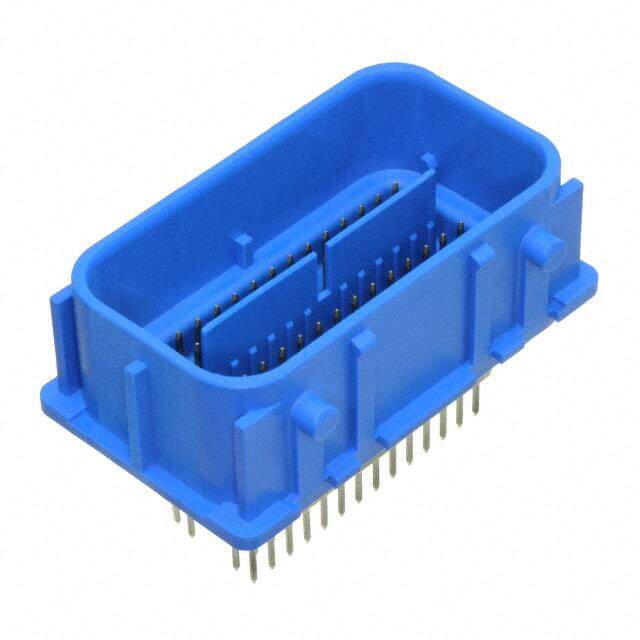

Conn Shrouded Header HDR 56 POS 2.54mm Solder ST Thru-Hole MX123? Carton
PDF
/
Buying Options
Total Price: USD $11.63
Unit Price: USD $11.6336
≥1 USD $11.6336
≥10 USD $9.7504
Inventory: 2304
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Technical
Packaging Bulk
Series MX123 31386
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 56
Applications Automotive
Number of Rows 4
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.848 21.54mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Blue
Contact Length - Post 0.256 6.50mm
Shrouding Shrouded - 4 Wall
Compliance
RoHS Status ROHS3 Compliant
