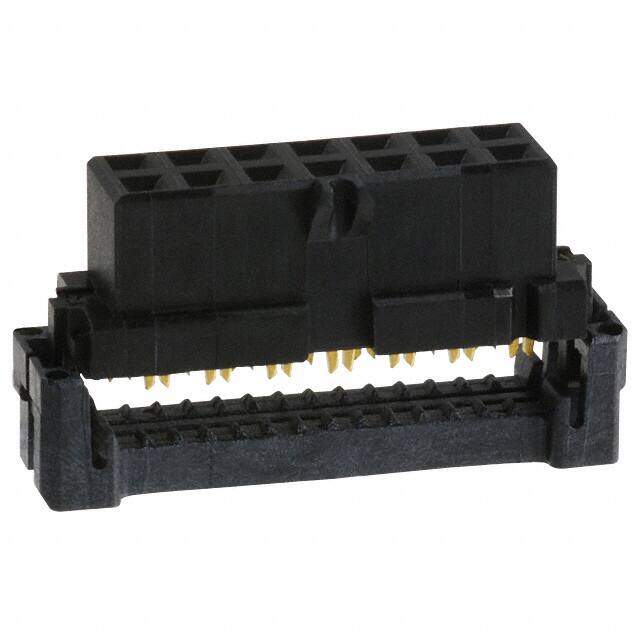

111623-2
RoHS
/
Package /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description
CONN RECEPT IDC 14POS 2MM POL AU
PDF
/
Inventory: 4874
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyester
Technical
Packaging Bulk
Published 2011
Series AMP-Latch
Feature Feed Through, Polarizing Key
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Number of Positions 14
Max Operating Temperature 105°C
Min Operating Temperature -65°C
Color Black
Number of Rows 2
Voltage - Rated 30V
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Type Female Socket
Pitch 0.079 2.00mm
Total Number of Contacts 14
Orientation Right Angle
Current Rating 3A
Reference Standard UL, CSA
Contact Finish Gold
Reliability COMMERCIAL
Body Length or Diameter 0.755 inch
Lead Pitch 2mm
Contact Gender Female
Rated Current (Signal) 1A
Contact Resistance 25mOhm
Wire Gauge 28 AWG
Row Spacing 0.079 (2.00mm)
Body/Shell Style PLUG
ELV Non-Compliant
Max Voltage Rating (AC) 125V
Polarization Key POLARIZED HOUSING
Wire/Cable Type Ribbon
Wire/Cable Gauge 28 AWG
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Plating Thickness 30μin
Compliance
Radiation Hardening No
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
