09185346803
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Free Hanging, Panel Mount
Description

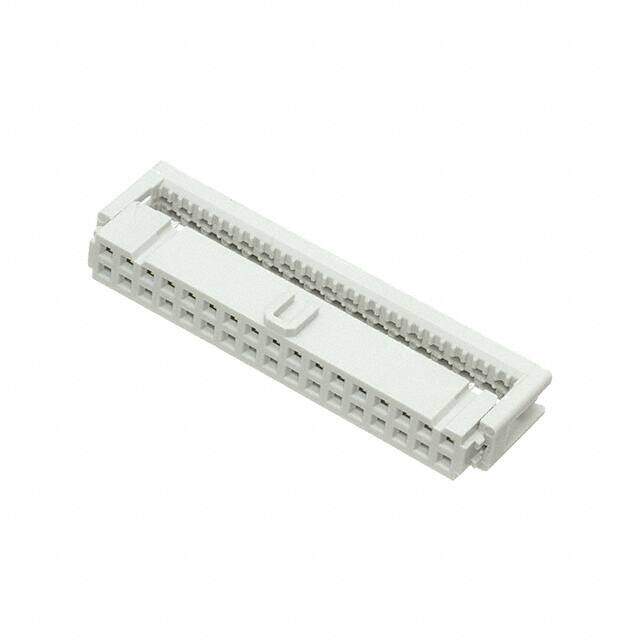

CONN RCPT 34POS IDC 26-28AWG
PDF
/
Buying Options
Total Price: USD $2.75
Unit Price: USD $2.7544
≥1 USD $2.7544
≥10 USD $2.5036
≥100 USD $2.205984
≥500 USD $1.875051
≥1000 USD $1.599312
≥3000 USD $1.433863
Inventory: 214
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material NOT SPECIFIED
Contact Plating Gold
Mount Cable, Free Hanging
Mounting Type Free Hanging (In-Line)
Insulation Material PBTP 30% FIBRE ENHANCED
Technical
Packaging Bulk
Series SEK
Feature Feed Through, Polarizing Key
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination IDT
ECCN Code EAR99
Connector Type Receptacle
Number of Rows 2
Additional Feature STANDARD: IEC 60603-13; DIN EN 60603-13, POLARIZED
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Female Socket
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 0.100 2.54mm
Total Number of Contacts 34
Orientation Right Angle
Depth 7.2mm
Current Rating 2A
Reference Standard UL
Reliability COMMERCIAL
Lead Pitch 2.54mm
Contact Gender Female
Operating Temperature (Min) -55°C
UL Flammability Code 94V-0
Rated Current (Signal) 2A
Wire Gauge 26-28 AWG
Insulation Resistance 1000000000Ohm
Row Spacing 0.100 (2.54mm)
Body/Shell Style PLUG
Polarization Key CENTER
Wire/Cable Type Ribbon
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 26 AWG
Number of Poles 34
Cable Termination IDC
Wire Type Ribbon Cable
Dimensions
Length 47.8mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
