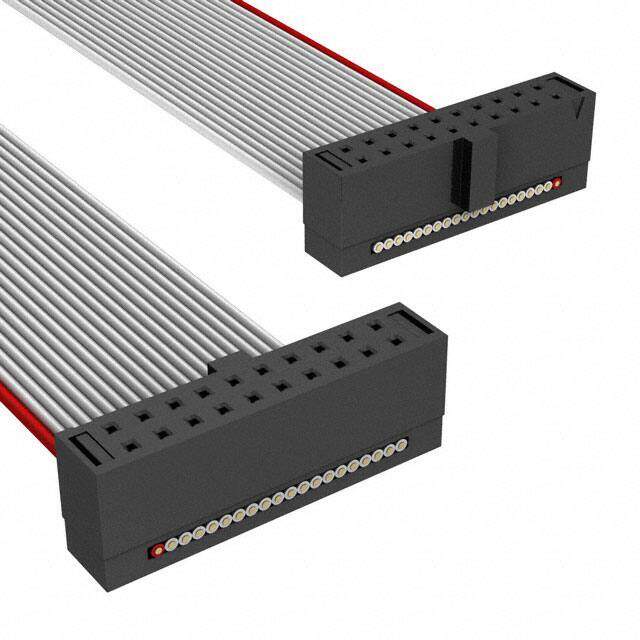

TCSD-10-D-02.00-01-N
RoHS
RoHS compliant
RoHS compliantPackage /
Category Cable Assemblies / Rectangular Cable Assemblies
Description
CABLE ASSEM 2MM 20POS F-F 2"
PDF
/
Buying Options
Total Price: USD $10.43
Unit Price: USD $10.428
≥1 USD $10.428
≥10 USD $9.636
≥100 USD $9.108
≥500 USD $8.7824
≥1000 USD $7.1896
≥3000 USD $6.6528
Inventory: 418
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Contact Finish Thickness 30.0μin 0.76μm
Length 0.167' 50.80mm 2.00
Technical
Conductor Finish TIN
Wire and Cable Name FLAT CABLE
Stranding 7X36
Connector Type B Connector, IDC
Connector Type A Connector, IDC
Pitch - Cable 0.039 1.00mm
Pitch - Connector 0.079 2.00mm
Cable Termination IDC
Wire/Cable Gauge 28 AWG
Cable Length 50mm
Wire/Cable Type Flat Flex
Connector Support Type CABLE ASSEMBLY
Approval Agency UL
Contact Finish Gold
Number of Conductors 20
Construction STRANDED
Shielding Unshielded
Gender Female
Number of Rows 2
Color Gray, Ribbon
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Number of Positions 20
Connector Type Socket to Socket
Termination IDT
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Polarizing Key
Series Tiger Eye? TCSD
Packaging Bulk
Physical
Insulation Material POLYVINYL CHLORIDE
Contact Material Copper
Supply Chain
Factory Lead Time 3 Weeks
