0041.0403
RoHS
RoHS compliant
RoHS compliantPackage 0403
Category Switches / Pushbutton Switches
Description

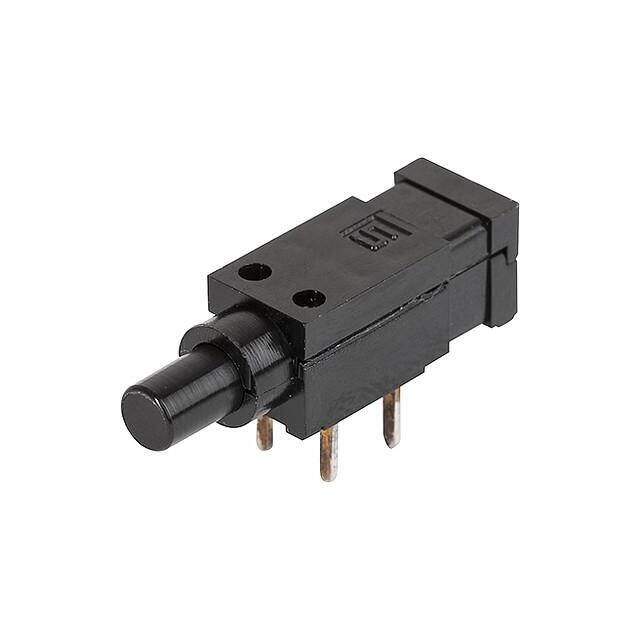

Switch Push Button N.O./N.C. SPDT Round Button 2A 125VAC 50VDC Momentary Contact PC Pins Thru-Hole
PDF
/
Buying Options
Total Price: USD $10.43
Unit Price: USD $10.428
≥1 USD $10.428
≥10 USD $9.3852
≥100 USD $8.394144
Inventory: 227
Minimum: 1
-
+
Technical Details
Compliance
Ratings IP40
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 7.2mm
Technical
Mechanical Life 200,000 Cycles
Max Voltage Rating (DC) 50V
Throw Configuration SPDT
Electrical Life 100,000 Cycles
Max Current Rating 2A
Max Voltage Rating (AC) 125V
Color - Actuator/Cap Green
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Plunger
Voltage - Rated AC 125V
Termination Style PC Pin
Current Rating 2A
Depth 25.5mm
Ingress Protection IP40
Current Rating (Amps) 2A AC/DC
Voltage - Rated DC 50V
Color Green
Min Operating Temperature -40°C
Max Operating Temperature 85°C
Type Standard
Termination PC Pin
Moisture Sensitivity Level (MSL) Vendor Undefined
Part Status Active
Series SDK
Packaging Bulk
Operating Temperature -40°C~85°C
Physical
Weight 1.149998g
Package / Case 0403
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Silver
Supply Chain
Factory Lead Time 15 Weeks
