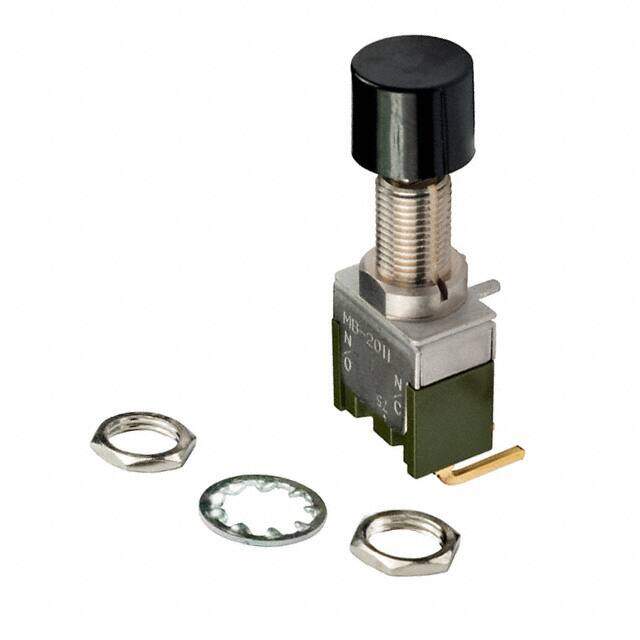

MB2011SS1G30-CA
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.4VA 28V
PDF
/
Buying Options
Total Price: USD $7.96
Unit Price: USD $7.9552
≥1 USD $7.9552
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.406 inch
Length - Termination 0.169 inch
Body Height 39.116mm
Technical
Bushing Length 0.335 inch
Solderability WAVE
Actuator Travel 1.8034 mm
Contact Function ON-(ON)
PCB Hole Count 5
Mechanical Life 100,000 Cycles
Electrical Life 50,000 Cycles
Dielectric Withstanding Voltage 1500VAC V
Color - Actuator/Cap Black
Insulation Resistance 1000000000Ohm
Contact Resistance 0.02mOhm
Panel Cutout Dimensions Circular - 6.50mm Dia
Switch Function On-Mom
Circuit SPDT
Actuator Type Round, Button
Body Breadth 7.8994 mm
Body Length or Diameter 13.0048mm
Voltage - Rated AC 28V
Termination Style PC Pin
Reach Compliance Code not_compliant
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
ECCN Code EAR99
Termination PC Pin
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Epoxy Sealed Terminals
JESD-609 Code e4
Series MB2000
Published 2011
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
End Contact Material COPPER ALLOY
Terminal Material COPPER ALLOY
Actuator Material POLYSTYRENE
Housing Material Resin
Mounting Type Panel Mount, Right Angle, Rear
Mount Panel
Contact Plating Gold
Supply Chain
Factory Lead Time 8 Weeks
