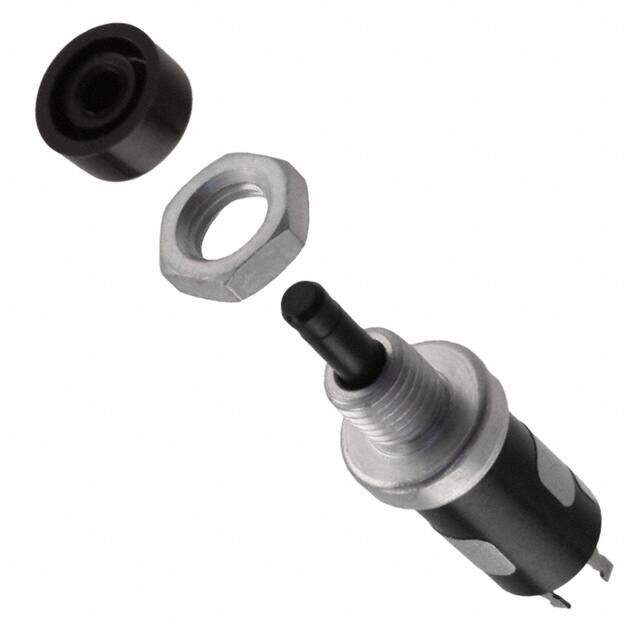

46-102 BLK
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPDT 0.25A 115V
PDF
/
Buying Options
Total Price: USD $14.52
Unit Price: USD $14.52
≥1 USD $14.52
≥10 USD $13.02224
≥100 USD $12.449536
≥500 USD $11.805552
≥1000 USD $11.3762
≥3000 USD $10.660707
Inventory: 778
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Panel Mount, Rear
Surface Mount NO
Mounting Feature PANEL MOUNT-THREADED
Insulation Material PHENOLIC
Actuator Material POLYPHENYLENE SULPHIDE
Center Contact Plating SILVER
Center Contact Material PHOSPHOR BRONZE
Terminal Material BRONZE
End Contact Material PHOSPHOR BRONZE
End Contact Plating SILVER
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2000
Series 46
JESD-609 Code e2
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Standard
Terminal Finish Tin/Silver (Sn/Ag)
HTS Code 8536.50.70.00
Current Rating (Amps) 250mA AC
Termination Style Solder Lug
Voltage - Rated AC 115V
Body Length or Diameter 11.1mm
Actuator Type Round, Button
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.75mm Dia
Contact Resistance 0.025mOhm
Insulation Resistance 1000000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1000VAC V
Electrical Life 250,000 Cycles
Contact Current(AC)-Max 0.25A
Contact Voltage(AC)-Max 115V
Contact Function (ON)-OFF
Actuator Travel 4.572 mm
Bushing Length 0.25 inch
Operating Force-Max 6.12 N
Bushing Diameter 0.25 inch
Dimensions
Body Height 17.86mm
Length - Termination 0.187 inch
Actuator Length 0.391 inch
Compliance
RoHS Status RoHS Compliant
