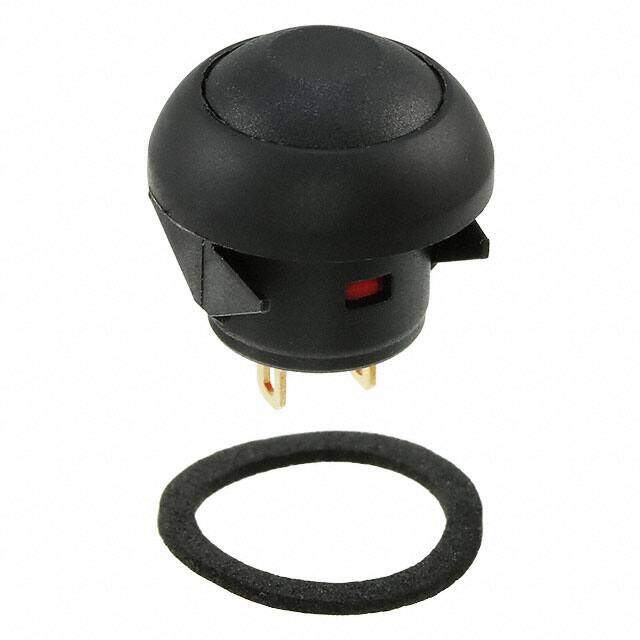

RP8100B1M1CEBLKBLKNIL
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PB SPST-NO 0.125A 125V
PDF
/
Buying Options
Total Price: USD $4.07
Unit Price: USD $4.0744
≥1 USD $4.0744
≥10 USD $3.6388
≥100 USD $3.445728
≥500 USD $3.322704
≥1000 USD $3.16448
≥3000 USD $3.023847
Inventory: 1256
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Gold, Silver
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Actuator Material Nylon
Technical
Operating Temperature -30°C~85°C
Packaging Bulk
Published 2008
Series RP8100
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Type Standard
Terminal Finish Gold (Au) - with Silver (Ag) barrier
HTS Code 8536.50.90.31
Voltage - Rated DC 50V
Current Rating (Amps) 125mA AC 100mA DC
Orientation Straight
Ingress Protection IP67 - Dust Tight, Waterproof
Current Rating 100mA
Termination Style Solder Lug
Voltage - Rated AC 125V
Body Length or Diameter 17.5mm
Actuator Type Round, Button
Circuit SPST-NO
Switch Function Off-Mom
Panel Cutout Dimensions Circular - 13.60mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Black
Contact Current(DC)-Max 0.1A
Sealing EPOXY TERMINAL SEALED; IP67
Max Voltage Rating (AC) 125V
Electrical Life 500,000 Cycles
Throw Configuration SPST
Max Voltage Rating (DC) 50V
Contact Current Rating 125mA
Illumination Type Illuminated
Contact Current(AC)-Max 0.125A
Contact (AC) Max Rating R Load .125A@125VAC
Hole Diameter 13.6 mm
Contact (DC) Max Rating R Load .1A@50VDC
Operating Force-Max 3.92 N
Dimensions
Body Height 9.4mm
Actuator Length 1.85mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP67, Waterproof
