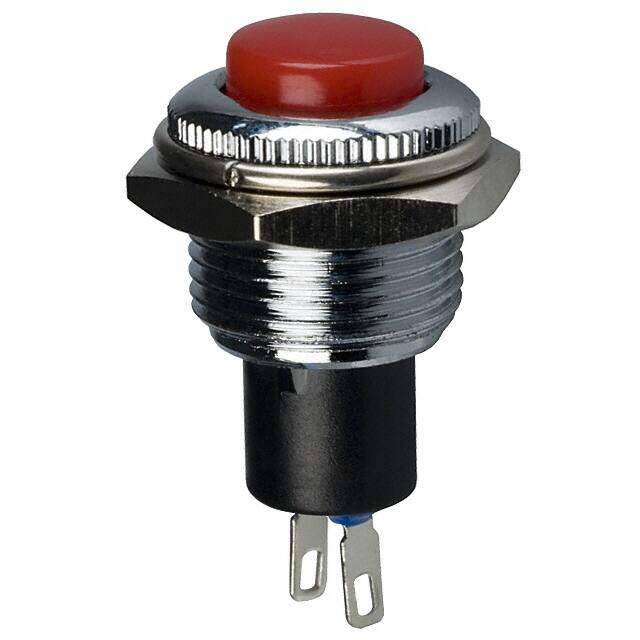

RP3502MBRED
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NC 3A 120V
PDF
/
Buying Options
Total Price: USD $3.49
Unit Price: USD $3.4936
≥1 USD $3.4936
≥10 USD $2.853664
≥100 USD $2.70424
≥500 USD $2.27099
Inventory: 924
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 0.118 inch
Length - Termination 0.228 inch
Body Height 16.9926mm
Diameter 14mm
Technical
Contact Function ON-(OFF)
Contact (AC) Max Rating R Load 3A@120VAC
Contact Current(AC)-Max 3A
Illumination Type Illuminated
Contact Current Rating 3A
Mechanical Life 6,000 Cycles
Throw Configuration SPST
Electrical Life 6,000 Cycles
Dielectric Withstanding Voltage 1000VAC V
Color - Actuator/Cap Red
Insulation Resistance 500000000Ohm
Contact Resistance 0.05mOhm
Panel Cutout Dimensions Circular - 12.70mm Dia
Switch Function On-Mom
Circuit SPST-NC
Actuator Type Round, Button
Voltage - Rated AC 120V
Termination Style Solder Lug
Current Rating 3A
Orientation Vertical
Current Rating (Amps) 3A AC
Type Standard
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series RP3502
Published 2002
Packaging Bulk
Operating Temperature -20°C~65°C
Physical
Insulation Material BRASS
Mounting Type Panel Mount, Front
Mount Front, Panel
Supply Chain
Factory Lead Time 10 Weeks
