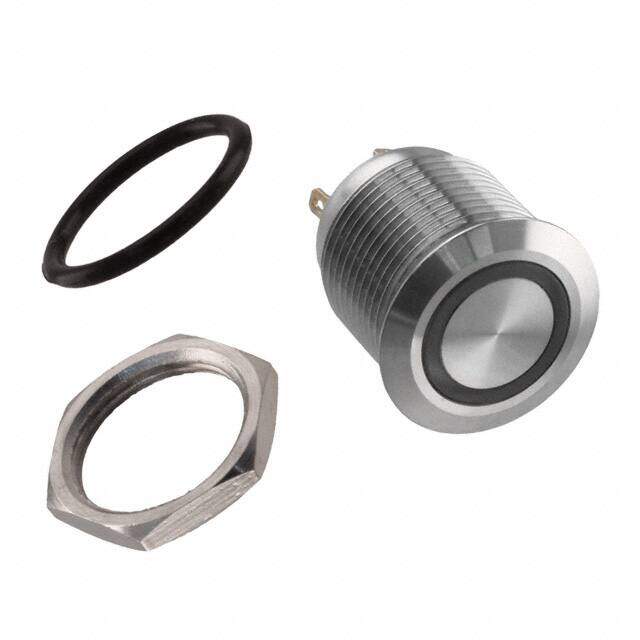

PV6F240SS-311
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 2A 48V
PDF
/
Buying Options
Total Price: USD $11.62
Unit Price: USD $11.6248
≥1 USD $11.6248
≥10 USD $10.50456
≥100 USD $9.493
≥500 USD $9.156074
≥1000 USD $8.594335
≥3000 USD $7.864102
Inventory: 286
Minimum: 1
-
+
Technical Details
Compliance
Ratings Dust Tight, IP65, Water Resistant
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Actuator Length 0m
Technical
Hole Diameter 16 mm
Illumination Color Red
Illumination Type LED
Contact Current Rating 2A
Mechanical Life 1,000,000 Cycles
Max Voltage Rating (DC) 48V
Throw Configuration SPST
Electrical Life 200,000 Cycles
Illumination Type, Color LED, Red
Illumination Voltage (Nominal) 1.8VDC
Contact Resistance 50mOhm
Panel Cutout Dimensions Circular - 16.00mm Dia
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button, Flush
Termination Style Solder Lug
Current Rating 2A
Ingress Protection IP65 - Dust Tight, Water Resistant
Orientation Straight
Current Rating (Amps) 2A DC
Voltage - Rated DC 48V
Type Anti-Vandal, Illuminated
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series PV6, LAMB
Published 2005
Packaging Bulk
Operating Temperature -20°C~70°C
Physical
Actuator Material Stainless Steel
Housing Material PBT
Mounting Type Panel Mount, Front
Mount Front, Panel
Contact Material Silver
Supply Chain
Factory Lead Time 9 Weeks
