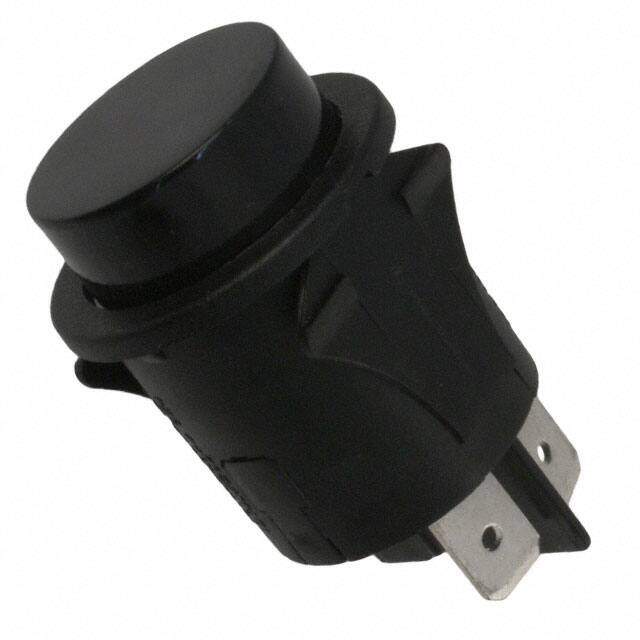

PR141C1100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST 16A 125V
PDF
/
Buying Options
Total Price: USD $1.71
Unit Price: USD $1.7072
≥1 USD $1.7072
≥10 USD $1.53032
≥100 USD $1.315512
≥500 USD $1.121648
Inventory: 3220
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Mount Panel, Snap in
Mounting Type Panel Mount, Snap-In
Insulation Material POLYAMIDE
Actuator Material POLYAMIDE
Center Contact Plating SILVER
Center Contact Material COPPER
Terminal Material COPPER
End Contact Material COPPER
End Contact Plating SILVER
Technical
Operating Temperature -20°C~105°C
Packaging Bulk
Published 2012
Series PR1, LAMB
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Quick Connect
ECCN Code EAR99
Type Standard
Current Rating (Amps) 16A AC
Current Rating 16A
Termination Style Quick Connect - 0.250 (6.3mm)
Voltage - Rated AC 125V
Actuator Type Round, Button
Circuit SPST
Switch Function Off-On
Panel Cutout Dimensions Circular - 25.00mm Dia
Contact Resistance 0.035mOhm
Insulation Resistance 100000000Ohm
Color - Actuator/Cap Black
Dielectric Withstanding Voltage 1500VAC V
Electrical Life 10,000 Cycles
Contact (AC) Max Rating R Load 16A@125VAC
Contact (AC) Max Power Rating R Load 0.75HP@250VAC
Dimensions
Body Height 22.5044mm
Length - Termination 0.386 inch
Actuator Length 0.394 inch
Compliance
RoHS Status ROHS3 Compliant
