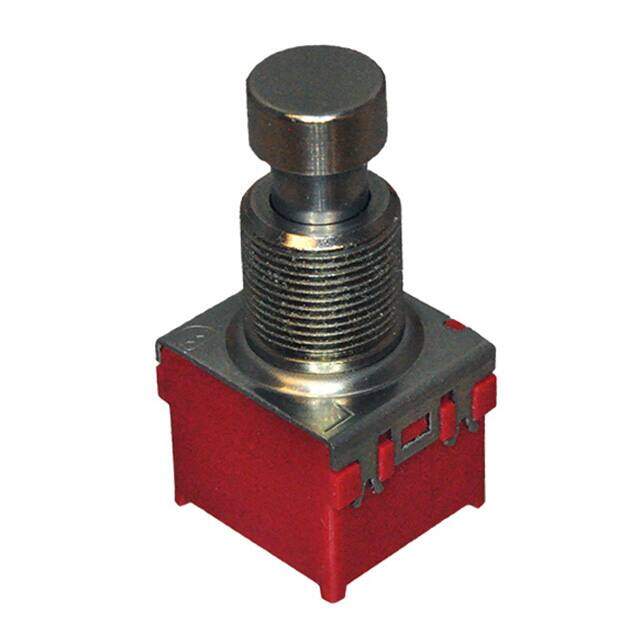

FS5700SPLT2B2M1QEH
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 1A 9V
PDF
/
Buying Options
Total Price: USD $4.41
Unit Price: USD $4.4088
≥1 USD $4.4088
≥10 USD $3.96792
≥100 USD $3.76816
≥500 USD $3.608704
≥1000 USD $3.510091
Inventory: 161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Mounting Type Panel Mount, Rear
Technical
Operating Temperature -10°C~70°C
Packaging Bulk
Series FS5700
Feature Epoxy Sealed Terminals
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Standard
Voltage - Rated DC 9V
Current Rating (Amps) 1A DC
Termination Style Solder Lug
Actuator Type Round, Button
Circuit SPDT
Switch Function On-On
Panel Cutout Dimensions Circular - 12.20mm Dia
Color - Actuator/Cap Silver
Electrical Life 30,000 Cycles
Contact Current Rating 1A
Dimensions
Width 12mm
Compliance
RoHS Status ROHS3 Compliant
