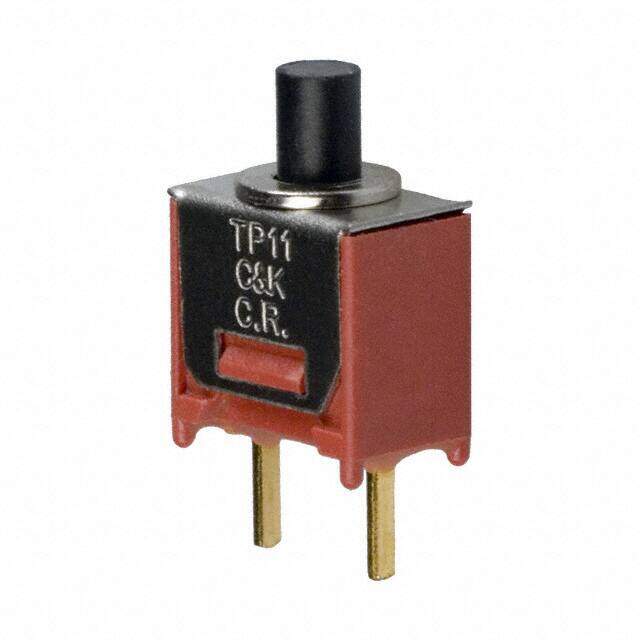

TP11MS9CBE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH SPST-NO 0.4VA 20V
PDF
/
Buying Options
Total Price: USD $8.54
Unit Price: USD $8.536
≥1 USD $8.536
≥10 USD $7.69032
≥100 USD $7.368064
≥500 USD $7.00568
≥1000 USD $6.72386
≥3000 USD $6.321242
Inventory: 172
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Actuator Length 3.3mm
Length 8.13mm
Technical
Max Voltage Rating (DC) 20V
Throw Configuration SPST
Electrical Life 60,000 Cycles
Max Voltage Rating (AC) 20V
Color - Actuator/Cap Black
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Plunger
Voltage - Rated AC 20V
Termination Style PC Pin
Depth 5.08mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 20V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Epoxy Sealed Terminals
Series TP
Published 2006
Packaging Bulk
Operating Temperature -30°C~85°C
Physical
Actuator Material Polyester, Thermoplastic
Housing Material Stainless Steel
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Supply Chain
Factory Lead Time 12 Weeks
