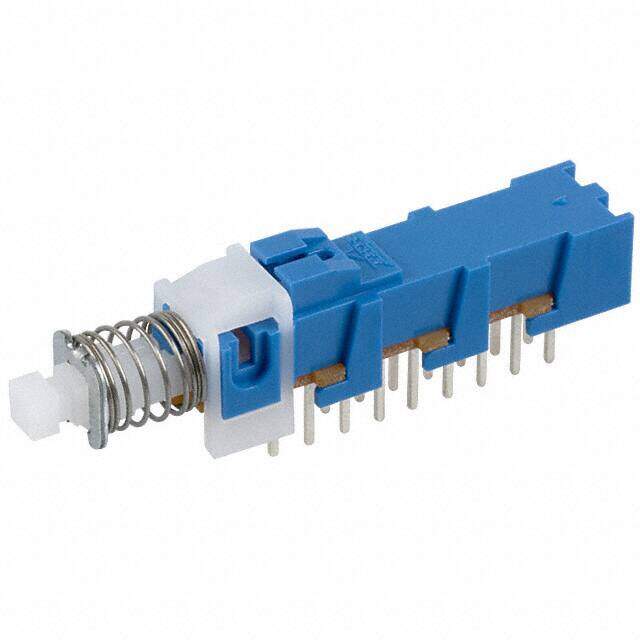

PHA6UOA
RoHS
/
Package /
Category Switches / Pushbutton Switches
Description
SWITCH PUSH 6PDT 0.1A 30V
PDF
/
Buying Options
Total Price: USD $3.8
Unit Price: USD $3.796907
≥1 USD $3.796907
≥200 USD $1.515087
≥400 USD $1.465196
≥800 USD $1.438938
Inventory: 6718
Minimum: 1
-
+
Technical Details
Technical
Current Rating 100mA
Termination Style PC Pin
Actuator Type Plunger for Cap
Circuit 6PDT
Switch Function On-Mom
Contact Resistance 20mOhm
Color - Actuator/Cap White
Max Current Rating 100mA
Electrical Life 10,000 Cycles
Throw Configuration 6PDT
Max Voltage Rating (DC) 30V
Contact Current Rating 100mA
Illumination Type Illuminated
Depth 41mm
Orientation Right Angle
Current Rating (Amps) 100mA DC
Voltage - Rated DC 30V
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Epoxy Sealed Terminals
Series PHA
Published 2003
Packaging Bulk
Operating Temperature -10°C~60°C
Dimensions
Length 7.4mm
Width 7.4mm
Actuator Length 4mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Physical
Actuator Material Polyoxymethylene
Housing Material Phenolic
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Silver
Contact Material Bronze
Supply Chain
Factory Lead Time 9 Weeks
