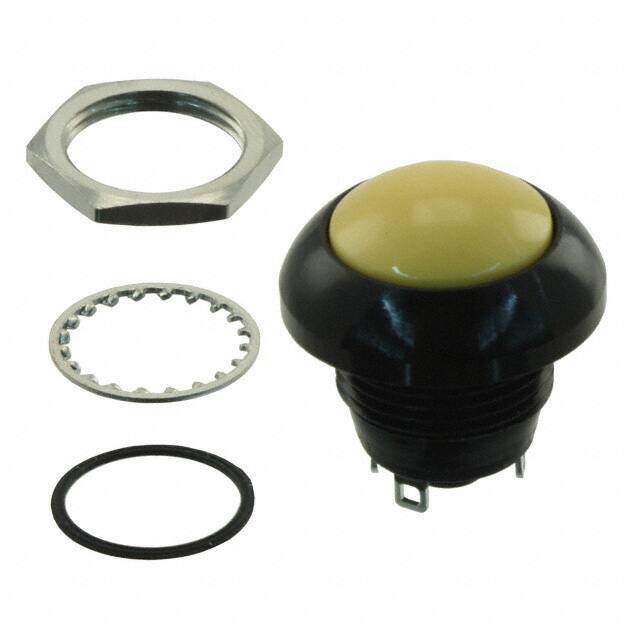

NP8S5D203QE
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description
SWITCH PUSHBUTTON SPDT 5A 32V
PDF
/
Buying Options
Total Price: USD $25.52
Unit Price: USD $25.52
≥1 USD $25.52
≥10 USD $23.17392
Inventory: 74
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Plating Silver
Mount Front, Panel
Mounting Type Panel Mount, Front
Housing Material Aluminium
Actuator Material Polybutylene
Technical
Operating Temperature -40°C~85°C
Packaging Bulk
Published 2012
Series NP
Feature Epoxy Sealed Terminals
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Voltage - Rated DC 32V
Current Rating (Amps) 5A DC
Orientation Straight
Ingress Protection IP68 - Dust Tight, Waterproof
Current Rating 5A
Termination Style Solder Lug
Actuator Type Round, Button, Domed
Circuit SPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 12.30mm Dia
Contact Resistance 50mOhm
Color - Actuator/Cap Yellow
Electrical Life 25,000 Cycles
Max Voltage Rating (DC) 32V
Mechanical Life 1,000,000 Cycles
Contact Current Rating 5A
Dimensions
Actuator Length 2.6mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP68, Waterproof
