FP11SPC1B1TP02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Switches / Pushbutton Switches
Description

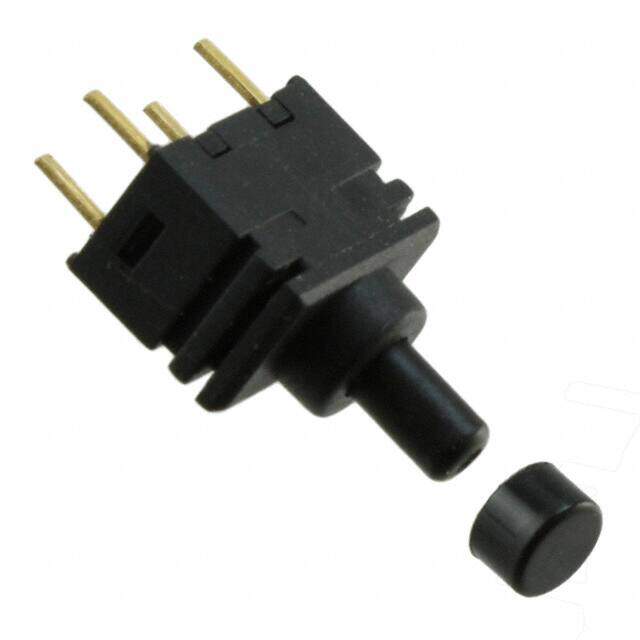

Switch Push Button OFF Mom SPST Round Plunger 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole Tray
PDF
/
Buying Options
Total Price: USD $4.7
Unit Price: USD $4.6992
≥1 USD $4.6992
≥10 USD $4.2196
≥100 USD $4.024416
≥500 USD $3.85132
≥1000 USD $3.809344
Inventory: 659
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Actuator Length 3.3mm
Length 7mm
Technical
Illumination Type Illuminated
Max Voltage Rating (DC) 28V
Throw Configuration SPST
Electrical Life 50,000 Cycles
Max Voltage Rating (AC) 28V
Color - Actuator/Cap Black
Contact Resistance 80mOhm
Switch Function Off-Mom
Circuit SPST-NO
Actuator Type Round, Button
Voltage - Rated AC 28V
Termination Style PC Pin
Depth 4.5mm
Orientation Straight
Current Rating (Amps) 0.4VA AC/DC
Voltage - Rated DC 28V
Power Rating 400mW
Type Standard
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series FP
Packaging Tray
Operating Temperature -20°C~80°C
Physical
Actuator Material Polyphenylene
Mounting Type Through Hole
Mount Through Hole
Contact Plating Gold
Contact Material Bronze
Supply Chain
Factory Lead Time 14 Weeks
