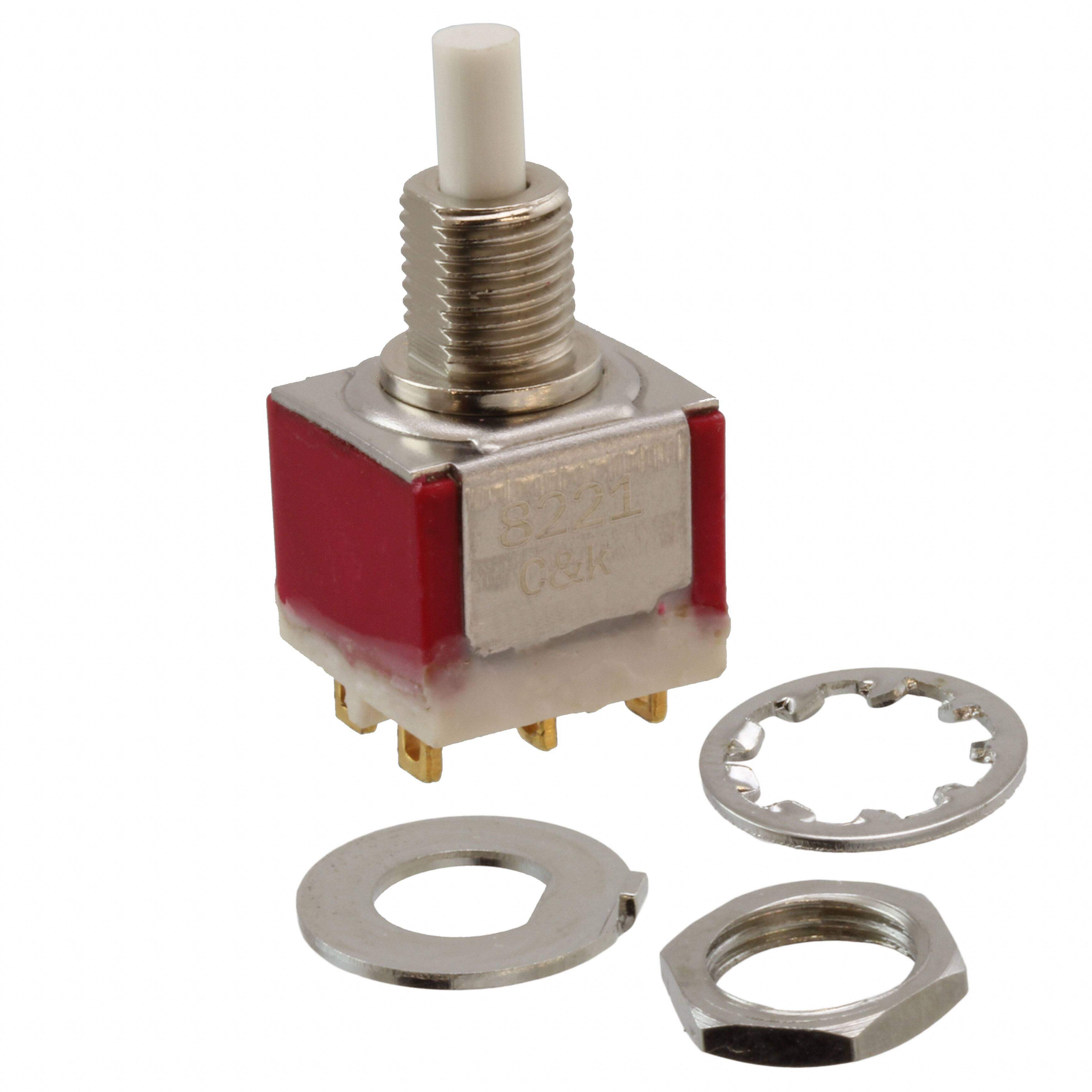

8221SHZGI image
Favorite
8221SHZGI image
Favorite

8221SHZGI

C&K
RoHS
RoHS RoHS compliant
Package /
Category Switches / Pushbutton Switches
Description SWITCH PUSHBUTTON DPDT 1A 120V
PDF
/
Buying Options
Total Price: USD $16.98
Unit Price: USD $16.984987
≥1 USD $16.984987
≥200 USD $6.57369
≥500 USD $6.34262
≥1000 USD $6.228398
Inventory: 1406
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Contact Material Silver
Contact Plating Gold
Mount Panel
Mounting Type Panel Mount, Rear
Housing Material Stainless Steel
Actuator Material Glass, Nylon, Polyester

Technical

Operating Temperature -30°C~75°C
Packaging Bulk
Published 2012
Series 8020
Feature Tactile Feedback
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Type Standard
Power Rating 400mW
Voltage - Rated DC 28V
Current Rating (Amps) 1A AC/DC
Orientation Straight
Depth 11.43mm
Current Rating 1A
Termination Style Solder Lug
Voltage - Rated AC 120V
Actuator Type Round, Plunger
Circuit DPDT
Switch Function On-Mom
Panel Cutout Dimensions Circular - 6.35mm Dia
Color - Actuator/Cap White
Max Voltage Rating (AC) 120V
Max Current Rating 1A
Electrical Life 60,000 Cycles
Max Voltage Rating (DC) 28V

Dimensions

Length 12.7mm
Actuator Length 5.54mm

Compliance

RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
